N2XH Cable
Products Visitors:363
Products description:

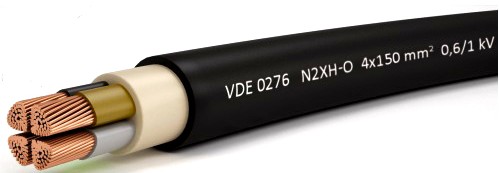

Product Name: N2XH Cable

General Description: 600/1000V,installation temperature is -5-50,fixed temperature is -40-90,test voltage is 4KV,minimum bending radius for single core is 15D,multicore is 12D.

Application:Halogen-free power cables( N2XH ) with enhanced resistance to fire are used mostly in areas where harm to human life or material must be prevented in case of fire such as industrial and public buildings, hotels, subway systems, hospitals etc. These cables are suitable for dry and wet environments as well as for outer application but are not suitable for direct burial into earth or water.

Standards: IEC 60228,DIN VDE 0295,DIN VDE 0293-308,IEC 60754-1,IEC 60332-3

Construction: Copper conductor,halogen free XLPE compound core insulation,cu tape or cu wire,thermoplastic polymer compound halogen free outer sheath.

Color: 2 cores is bule/brown,3 cores is brown/black/grey,4 cores is blue/brown/black/grey.


Dimensions - Number of cores x cross-section

Design

Construction of the individual keep the handlers safe

Outer Diameter

Insulation

Thickness

Shell Thickness

Resistance to keep the handlers safe at 20 ° C

Cu Weight

Cable Weight

Packaging





rated

about

rated

rated

max.



about



N x mm²



n x mm

mm

mm

mm

Ω/km

kg/km

kg/km



1 x 1,5

RE

1 x 1,38

5,4

1,38

0,15

12,10

15,403

43

REZ

1 x 4

RE

1 x 2,25

6,4

2,25

0,20

4,61

5,869

75

REZ

1 x 16

RM

7 x 1,70

9,1

5,00

0,36

1,15

1,464

202

REZ

1 x 25

RM

7 x 2,13

11

6,10

0,48

0,727

0,925

302

REZ

1 x 70

RM

19 x 2,17

15

10,10

0,84

0,268

0,341

745

REZ

1 x 95

RM

19 x 2,52

17

11,90

0,97

0,193

0,246

986

REZ

1 x 185

RM

37 x 2,52

23

16,20

1,72

0,0991

0,126

1888

REZ

1 x 300

RM

61 x 2,50

28

20,60

2,34

0,0601

0,077

2945

REZ

2 x 1,5

RE

1 x 1,38

9

1,38

0,38

12,10

15,403

120

REZ

2 x 2,5

RE

1 x 1,78

10

1,78

0,45

7,41

9,433

154

REZ

2 x 16

RM

7 x 1,70

16

5,00

1,06

1,15

1,464

563

REZ

2 x 25

RM

7 x 2,13

20

6,10

1,52

0,727

0,925

840

REZ

2 x 35

RM

7 x 2,52

22

7,20

1,79

0,524

0,667

1106

REZ

2 x 120

RM

37 x 2,03

36

13,00

4,23

0,153

0,195

3343

REZ

2 x 300

RM

61 x 2,50

55

20,60

9,39

0,0601

0,077

8072

REZ

5 x 1,5

RE

1 x 1,38

11

1,38

0,62

12,10

15,403

193

REZ

5 x 4

RE

1 x 2,25

13

2,25

0,85

4,61

5,869

352

REZ

5 x 6

RE

1 x 2,76

15

2,76

0,99

3,08

3,921

475

REZ

5 x 16

RM

7 x 1,70

21

5,00

1,87

1,15

1,464

1081

REZ

5 x 25

RM

7 x 2,13

26

6,10

2,61

0,727

0,925

1631

REZ

5 x 50

RM

19 x 1,83

33

8,30

3,89

0,387

0,493

2915

REZ


If you want to know the details about other sizes,please write us the email.

CE means the product conformed with the EC LV directive 73/23/EEC,rm is round conductor stranded,re is round conductor plain,conforms to RoHS
