SER Cable
Products Visitors:694
Products description:


Product Name: SER Cable

UL Number: E488724

General Description: 600V,AA-8000 series conductors,PVC jacket.

Application: SER is used to convey power from service drop to the meter base and from the meter base to the distribution panelboard;however it may be used in all applications where type SER cable is permitted.SER cable may be used in wet or dry locations at temperature not exceed 90,suitable for operation at 600V or less as specified in the NEC.

Standards: UL 44,UL 854 etc.

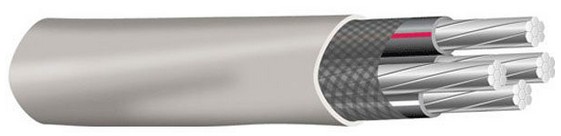

Construction: Conductors are AA-8000 series aluminum alloy compact stranded,SER cable assembly plus reinforcement tape are jacketed with gray sunlight resistant PVC.Available as: 2 conductors ( 2 insulated phase conductors,bare ground ); 3 conductors ( 2 insulated phase conductors,insulated neutral,bare equipment ground ); 4 conductors ( 3 insulated phase conductors,insulated neutral,bare equipment ground ).



Conductor

Stranding*

Nominal O.D.
(mils)            (mm)

Allowable Ampacities+

Approx. Net
Weight per
1000' (lbs)

Size/Const.
AWG or kcmil

Phase
Conductor &
Neutral

Equipment
Ground
Conductor

60° C

75° C

90° C

Dwelling

SER Aluminum Two Conductor With Bare Ground

6-6-6

7

-

650

16.51

40

50

60

-

150

4-4-4

7

-

745

18.92

55

65

75

-

203

4-4-6

7

-

745

18.92

55

65

75

-

203

2-2-2

7

-

864

21.95

75

90

100

100

290

2-2-4

7

-

864

21.95

75

90

100

100

290

2/0-2/0-1

12

-

1140

28.96

115

135

150

150

527

2/0-2/0-2/0

12

-

1140

28.96

115

135

150

150

527

4/0-4/0-2/0

19

-

1354

34.39

150

180

205

200

784

4/0-4/0-4/0

19

-

1354

34.39

150

180

205

200

784

SER Aluminum Three Conductor With Bare Ground

8-8-8-8

1

1

612

15.54

30

40

45

-

136

6-6-6-6

7

7

717

18.21

40

50

60

-

196

4-4-4-6

7

7

823

20.90

55

65

75

-

252

2-2-2-4

7

7

956

24.28

75

90

100

100

359

1-1-1-3

8

7

1079

27.41

85

100

115

110

449

1/0-1/0-1/0-2

10

1

1168

29.67

100

120

135

125

540

2/0-2/0-2/0-1

12

1

1264

32.11

115

135

150

150

652

3/0-3/0-3/0-1/0

16

1

1371

34.82

130

155

175

175

786

4/0-4/0-4/0-2/0

19

1

1496

38.00

150

180

205

200

960

250-250-250-3/0

22

1

1839

46.71

170

205

230

225

1458

SER Aluminum Four Conductor With Bare Ground

2-2-2-2-4

6

7

1059

26.90

75

90

100

100

452

2/0-2/0-2/0-2/0-1

12

1

1404

35.66

115

135

150

150

827

4/0-4/0-4/0-4/0-2/0

19

1

1672

42.47

150

180

205

200

1228

250-250-250-250-3/0

22

1

1847

46.91

170

205

230

225
