Secondary UD Quadruplex
Products Visitors:116
Products description:

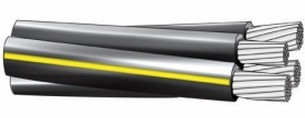

Product Name: Secondary UD Quadruplex

UL Number: E488724

General Description: 600V,stranded,compressed 1350-H19 aluminum,insulated with XLPE,neutrals are identified with triple solid yellow stripes,three phase conductors are one neutral conductor cabled together.

Standards: ICEA S-105-692,ASTM B-230,B-231,UL 854

Application: The quadruplex 600V Secondary UD cable is mainly used for secondary distribution and underground service either direct burial or inducts.


Code

Phase Conductor

Neutral

Diameter

Net Weight

1000FT

lbs

Allowable Ampacities Raceway Cable,Ducts

AWG

Kcmil

Wires

Nos

Insulation

Thickness

In

AWG

Kcmil

Wires Nos

Insulation Thickness In

Phase Conductor

In

Complete Cable

In

Tulsa

4

7

0.060

4

7

0.060

0.344

0.831

259

85

Dyke

2

7

0.060

4

7

0.060

0.403

0.973

348

110

Wittenberg

2

7

0.060

2

7

0.060

0.403

0.973

378

110

Notre Dame

1/0

19

0.080

2

7

0.060

0.521

1.258

544

150

Purdue

1/0

19

0.080

1/0

19

0.080

0.521

1.258

600

150

Syracuse

2/0

19

0.080

1

19

0.080

0.565

1.363

671

165

Lafayette

2/0

19

0.080

2/0

19

0.080

0.565

1.363

728

165

Swarthmore

3/0

19

0.080

1/0

19

0.080

0.614

1.483

813

190

Davidson

3/0

19

0.080

3/0

19

0.080

0.614

1.483

885

190

Mcpherson

4/0

19

0.080

2

7

0.060

0.672

1.621

899

190

Wake Forest

4/0

19

0.080

2/0

19

0.080

0.672

1.621

993

225

Eartham

4/0

19

0.080

4/0

19

0.080

0.672

1.621

1081

225

Rust

250

37

0.095

3/0

19

0.080

0.747

1.804

1216

250

Slippery Rock

350

37

0.095

4/0

19

0.080

0.850

2.053

1563

305

Wofford

500

37

0.095

350

37

0.095

0.980

2.366

2218

380

Westminster

750

61

0.110

350

37

0.095

1.190

2.873

3069

470
