Secondary UD Triplex
Products Visitors:130
Products description:

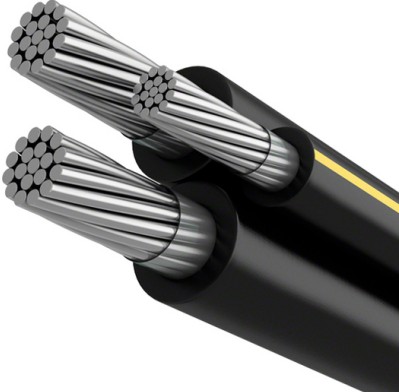

Product Name: Secondary UD Triplex

UL Number: E488724

General Description: 600V,stranded,compressed 1350-H19 aluminum insulated with XLPE,neutrals are identified with tripe solid yellow stripes,two phase conductor are neutral conductor cabled together.

Standards: ICEA S-105-692,UL 854,ASTM B-230,B-231.

Applications: The 600V Secondary UD Triplex cable is mainly used for secondary distribution and underground service either direct burial or in ducts.


Code

Phase Conductor

Neutral

Diameter

Net Weight

1000FT

lbs

Allowable Ampacities Raceway Cable,Ducts

AWG

Kcmil

Wires

Nos

Insulation

Thickness

In

AWG

Kcmil

Wires Nos

Insulation Thickness In

Phase Conductor

In

Complete Cable

In

Erskine

6

7

0.060

6

7

0.060

0.298

0.642

135

60

Vassar

4

7

0.060

4

7

0.060

0.344

0.742

193

75

Stephene

2

7

0.060

4

7

0.060

0.344

0.869

252

110

Ramapo

2

7

0.060

2

7

0.060

0.403

0.869

282

110

Bregen

1/0

19

0.080

2

7

0.060

0.403

1.123

392

150

Bregen

1/0

19

0.080

1/0

19

0.080

0.521

1.123

447

150

Converse

2/0

19

0.080

1

19

0.080

0.482

1.217

486

165

Hunter

2/0

19

0.080

2/0

19

0.080

0.565

1.217

543

165

Hollins

3/0

19

0.080

1/0

19

0.080

0.521

1.324

589

190

Rockland

3/0

19

0.080

3/0

19

0.080

0.614

1.324

660

190

Sweetbriar

4/0

19

0.080

2/0

19

0.080

0.565

1.447

719

225

Monmouth

4/0

19

0.080

4/0

19

0.080

0.672

1.447

807

225

Pratt

250

37

0.095

3/0

19

0.080

0.614

1.610

864

250

Wesleyan

350

37

0.095

4/0

19

0.080

0.672

1.833

1.133

305

Newark

350

37

0.095

350

37

0.095

0.896

1.931

1.459

305

Holyoke

500

37

0.095

300

37

0.095

0.801

2.112

1.562

380

Rider

500

37

0.095

350

37

0.095

0.850

2.112

1.617

380

Seton Hall

750

61

0.110

750

61

0.110

1.190

2.564

2.626

470
