THHN/THWN Cable
Products Visitors:283
Products description:

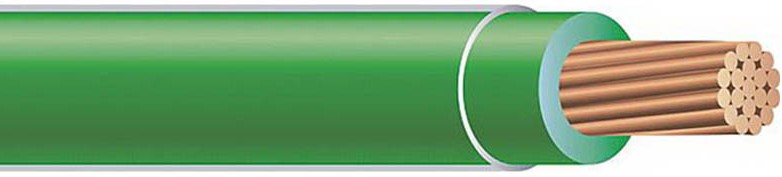

Product Name: THHN/THWN Cable

General Description: The nylon sheathed cable has more excellences in physical and electrical performance than the PVC cable.The cable has smaller outer diameter, lighter weight, less static friction coefficient than the same size of PVC cable,which greatly improve safety and convenience in installation and assembly of the cable.It is self-lubrication, and has good resistance to corrosion, oil, acids, alkali, and moisture. The cable is widely used in fixed installation, home appliance,lighting equipment,construction and aviation engine room with voltage up to 450/750V. Its permitted long term working temperature shall be 70°C or 90°C, installation temperature shall be over 0°C, and maximum bending radius shall be not less than 4 times of outer diameter of the cable.

Application:For use in power and control circuits, installed in conduit or duct. For wiring of machine tools(stranded conductors). Suitable for use in dry(90 °c) or wet( 75°c) loaction and in presence of oil or gasoline.Maximum voltage continuous rating: 600V

Construction: Copper conductor,PVC insulation,Nylon jacket

Standards: UL 83.UL 1063,UL 758,A-A-59544,NEMA WC-5,CSA etc.


  THHN/THWN

Size AWG

Conductor

Insulation
Thickness
(Mil)

Nylon
 Sheath
(Mil)

O.D(Inch)

Metric Construction*mm

Weight
1bs/1000ft

Ampacity*A

(Nos)

(Mil)

Conductor
Diameter

Insulation

Thickness

Overall
Diameter

Net

Cu

Net

Cu

14(RE)

1

0.064

15

4

0.105

1.63

0.381

0.102

16

12

20

25

12(RE)

1

0.081

15

4

0.122

2.05

0.381

0.102

24

20

25

30

10(RE)

1

0.101

20

4

0.153

2.50

0.508

0.102

38

31

35

40

14(RM)

7

0.024

15

4

0.112

1.83

0.381

0.102

16

12

20

25

12(RM)

7

0.030

15

4

0.13

2.29

0.381

0.102

24

18

25

30

10(RM)

7

0.038

20

4

0.164

2.90

0.508

0.127

38

32

35

40

8(RM)

7

0.048

30

5

0.22

3.66

0.762

0.127

64

51

50

55

6(RM)

7

0.061

30

5

0.256

4.65

0.762

0.153

98

81

65

75

4(RM)

7

0.077

40

6

0.325

5.87

1.018

0.153

155

129

85

95

3(RM)

19

0.052

40

6

0.353

6.6

1.018

0.153

190

163

100

110

2(RM)

19

0.059

40

6

0.386

7.5

1.018

0.178

236

205

115

130

1(RM)

19

0.066

40

7

0.443

8.4

1.27

0.178

300

258

130

150

1/0(RM)

19

0.074

50

7

0.484

9.4

1.27

0.178

372

326

150

170

2/0(RM)

19

0.083

50

7

0.529

10.6

1.27

0.178

462

411

175

195

3/0(RM)

19

0.094

50

7

0.579

12.0

1.27

0.178

575

518

200

225

4/0(RM)

19

0.105

50

7

0.635

13.4

1.27

0.178

716

653

230

260
