XHHW Cable
Products Visitors:349
Products description:

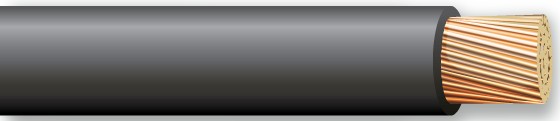

Product Name: XHHW Cable

UL Number: E488723

General Description: 600V building wire,maximum conductor operation temperature is 90 in wet and dry locations.

Application:These cables are used for general purpose wiring in circuits not exceeding 600 volts. May be used in wet or dry locations, installed in conduit, duct, or open air.

Standards: UL 44,CSA C 22.2 No.38,ICEA S-95-658,NEMA WC 70

Construction:1. Conductor: Soft annealed uncoated copper compressed Class B stranding, or unilaycompressed per ASTM B8.Sizes: 14 AWG - 1000 kcmil. On request, larger sizes available.2. Separator: A suitable opaque tape, as required. 3. Insulation: Thermoset flame retardant cross-linked polyethylene (XLPE). Color conductors sizes 14 - 8 AWG. Black conductors sizes 6 AWG and above.


Size

Number of Strands

Insulation Thickness

Approximate

 Outside Diameter

Approximate

Net Weight

AWG or kcmil

mil

in

lb/kft

14

7

30

0.13

18

12

7

30

0.15

27

10

7

30

0.18

40

8

7

45

0.24

67

6

7

45

0.27

101

4

7

45

0.32

153

2

7

45

0.38

236

1

19

55

0.44

298

1/0

19

55

0.48

369

2/0

19

55

0.53

459

3/0

19

55

0.58

572

4/0

19

55

0.63

713

250

37

65

0.70

849

300

37

65

0.75

1010

350

37

65

0.80

1171

400

37

65

0.85

1331

500

37

65

0.93

1651

600

61

80

1.04

1997

750

61

80

1.14

2477

1000

61

80

1.29

3272
