ZXW Middle Temperature Heating Cable

Original Image

Products Visitors:1296

Product Name:ZXW Middle Temperature Heating Cable

Products description:

Product Name: ZXW Middle Temperature Self-limiting Electric & Heating Cable

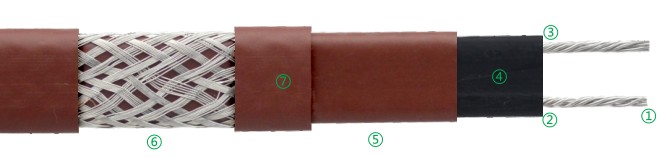

Construction: Tinned copper wire,low resistance transition layer,PTC core zone,evolutionary polyolefin insulation,amend polyolefin insulation,metal shielding net,low smoke zero halogen outer sheath (Fluoroplastic sheath can be choose).

Application: The cable is suitable for general area,danger area and corrosion area,temperature of media is 0-105℃,commonly used in explosion-proof,no corrosion,environment humidity small places.

Product Model: ZXW-J,ZXW-P,ZXWR-F,ZXW-PB,ZXW-PB 46

Middle Temperature Type: ZXW (ZXW,ZKW,ZBW,ZWK,ZHY,ZWL) corresponding to XTV series.

Product Features	Model	Power (W/m 10℃)	Working Voltage (V)	Maximum Length (m)
Flame Retardant Basic Type Middle Temperature	ZR ZXW-J	45--85	220	100
Flame Retardant Explosion-proof Type Middle Temp.	ZR ZXW-P	45--85	220	100
Flame Retardant Protection Type Middle Temp.	ZR ZXW-F	45--85	220	100
Flame Retardant Explosion-proof Protection Type Mid. Temp.	ZR ZXW-PB	45--85	220	100
Flame Retardant Explosion-proof Anti-corrosion Mid. Temp.	ZR ZXW-PB 46	45--85	220	100

For example: Middle temperature basic,10℃ per meter when the output power of 45W,working voltage is 220V.

Goods Features	Flame Retardant Explosion-proof Enhanced Middle Temperature
Model Name	ZXW-PB
Insulation Thickness (mm)	Inner Insulation: 0.30mm,Outer Insulation: 0.40mm
Overall Thickness	5.40±1 mm
Width	14.1±1 mm
Nominal Power w/m	10,20,30,40,50,60
Voltage (V)	220V
Wire Diameter	70.50,190.50
Highest Temperature	135℃
Applicable Occasions	Used for explosion-proff,anti-corrosion,low humidity places
