ADSS Fiber Cable
Products Visitors:301
Products description:

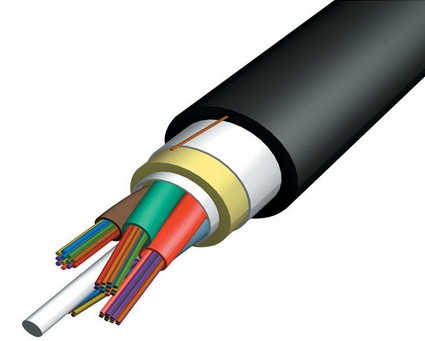

Product Name: ADSS Cable

Full Name: All Dielectric Self-Supporting Optical Fiber Cable

General Description: ADSS is a non-metal optical cable composed of dielectric material,self-supporting and hang on the transmission tower. It’s main used in overhead high voltage transmission system and telecommunication line.

Features: 1. All insulation dielectric self-supporting optical fiber cable

2. Multi-core,light weight,can be laid with the power line at the same tower and save resources.

3. Easy construction and maintenance,mostly no need to cut the power.

4. Made of high tensile strength of aramid materials to bear strong tension and prevent the birding pecking and shotting.

5. Small thermal expansion coefficient,when there is big change of temperature,the radian of optical cable line will be samll.

6. Can be used in more thunderstorm area.


ADSS SPECIFICATION

No

Project

Unit

Value

1

Model

ADSS

2

Fiber no.

cores

24

3

Span

m

200

300

400

500

600

700

800

4

OD (nb)

mm

11.5

11.8

12.2

12.5

12.8

14.3

14.5

5

Unit Weight

Kg/km

114

120

126

130

136

175

180

6

Area

mm

103.87

109.36

116.90

122.72

128.68

160.61

165.13

7

RTS

kN

16.25

22.5

28.75

32.5

38.75

51.25

56.25

8

MAT

kN

6.50

9.00

11.50

13.00

15.50

20.50

22.50

9

EDS

kN

2.93-4.06

4.05-5.63

5.18-7.19

5.85-8.13

6.98-9.69

9.23-12.81

10.13-14.06

10

UOS

kN

9.75

13.5

17.25

19.5

23.25

30.75

33.75

11

Module

kN/mm

14.21

17.80

20.90

22.52

25.22

27.17

28.76

12

Thermal Expansion Coefficient

10-6/

3.33

2.05

1.28

0.96

0.53

0.62

0.41

13

Min. Dynamic Bending Radius

mm

115

118

122

125

128

143

145

14

Min. Static Bending Radius

mm

230

236

244

250

256

286

290

15

Long-term pressure-resisting strength

N/100mm

1000

16

Short-term pressure-resisting strength

N/100mm

2200

17

Max. Laying electric potential

kV

12-25

18

Fitting temperature range

-40--70

19

Fiber beyond length

%

0.5—0.7

20

Max. length of drum

km

6
