TEC Cable/ Downhole Sensor Cable

Products Visitors:8567

Product Name:TEC Cable/ Downhole Sensor Cable

Products description:

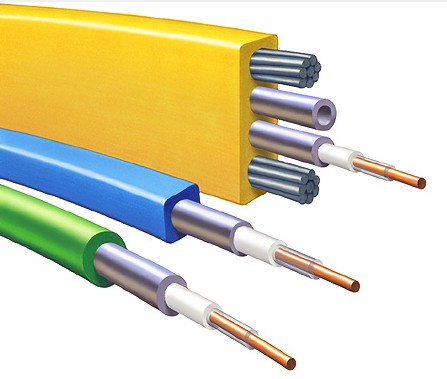

Product Name: Tubing Encapsulated Cable

Application: Monitor the temperature,pressure and other parameters in every wells.

Tube Materials: 316L,Alloy 400,Alloy 825,Alloy 625.

OD of Tube: 1/8'',1/4'',1/2'',3/8'',3/4'',5/8''.

Wall Thickness: 0.028'',0.035'',0.049'',0.065'',0.083''.

Encapsulation: Bare,Round,Square,Color-coated,Flatpacked.

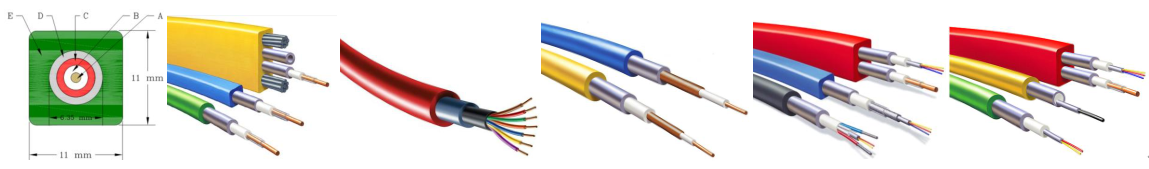

Sample Parameters A:

18AWG SINGLE CONDUCTOR STAINLESS STEEL TUBE
SQUARE ENCAPSULATION 15,000 PSI SYSTEM
INSULATION: PFA INSULATION
JACKET: PFA MATERIAL
TUBE: 1/4" x 0.028" A316L STAINLESS STEEL
ENCAPSULATION: TPR,11mm Round

A. 18#AWG 7/0.39mm Tin Coated Copper: OD 1.16mm (0.046〃) Nominal
B. PFA INSULATION:OD 2.49mm (0.098〃) Nominal
C. PFA JACKET: OD 4.92mm (0.194〃) Nominal
D. 316L STAINLESS STEEL TUBE:WALL THICKNESS:0.71mm(0.028〃),OD 6.35mm(0.250〃) Nominal
E. TPR ENCAPSULATION:MAJOR*MINOR:11mm*11mm

Sample Parameters B:

18AWG MONOCONDUCTOR STAINLESS STEEL TUBE
ENCAPSULATION 10,000 PSI SYSTEM
INSULATION: ETFE INSULATION
JACKET: POLYPROPYLENE MATERIAL
TUBE: 1/4" x 0.028" A316L STAINLESS STEEL TUBE
ENCAPSULATION: POLYPROPYLENE MATERIAL

A. 18#AWG 7×0.39mm Copper conductor: OD 1.19mm Nominal
B. ETFE INSULATION:OD 2.60mm Nominal
C. POLYPROPYLENE JACKET: OD 4.92mm Nominal
D. 316L STAINLESS STEEL TUBE:WALL THICKNESS:0.71mm(0.028〃),OD 6.35mm(0.250〃) Nominal
E. POLYPROPYLENE ENCAPSULATION:11mm×11mm COLOR:YELLOW
