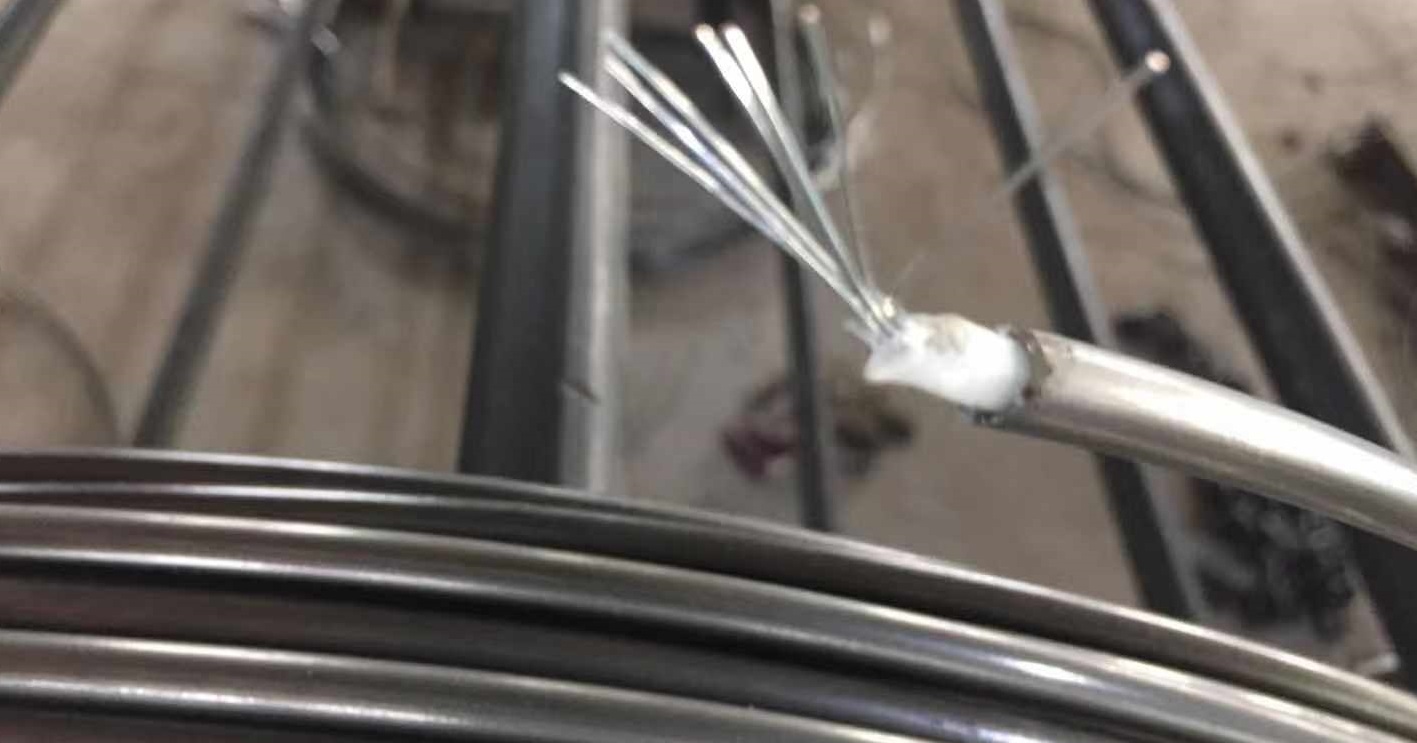

18AWG, 2205 Duplex Tubing Encapsulated Cable
18AWG, 2205 Duplex Tubing Encapsulated Cable
Original Image
Products Visitors:5070
Products description:



Product Name: 18AWG, 2205 Duplex Tubing Encapsulated Cable

Conductor: 18AWG Tinned Copper Conductor, OD: 1.02mm

Insulation: FEP Insulation, T-01, OD: 2.32mm

Jacket: PP Jacket, P-06, OD: 4.572mm

Tubing: 1/4"×0.035" 2205 Duplex Tubing Encapsulated Cable

External Collapse Pressure: 121.70 MPA

Cable Weight: 149 KG/KM

Temperature Rating: 150℃

Packing: Export Standard Packing, 15000FT per spool or 20000FT per spool





Download: Tubing Encapsulated Cable, ESPCS TEC 1/4"×0.035"WT Duplex 2205 FEP Insulation 18AWG Stranded, Tin Coated
