H07V-K Cable
Products Visitors:385
Products description:

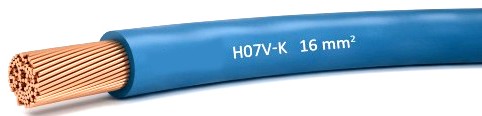

Product Name: H07V-K Cable

Application:Flexible insulated conductor( H07V-K ) used for laying in electric-installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment, same as for protective laying for lighting of nominal voltage up to 1000 V alternating current, or up to 750 V direct current against earth.

Standards: DIN VDE 0295,DIN VDE 0293,DIN VDE 0281.

Construction: Copper conductor,PVC compound TI1 insulation.


Dimensions – conductor cross-section

Construction of individual conductor

External Diameter

Insulation Thickness

Conductor resistance at 20 °C

Specific. el. resistance of insulation at 70°C

Cu Weight

Cable Weight

Packing*



nominal

min-max.

nominal

max

min.



approx.



mm²

n x mm

mm

mm

Ω/km

MΩkm

kg/km

kg/km



1,5

30 x 0,25

2,8 - 03,4

0,7

13,3

0,0100

14,4

20

c.100, c.200

2,5

50 x 0,25

3,4 - 04,1

0,8

7,98

0,0095

24,0

32

c.100

4

56 x 0,30

3,9 - 04,8

0,8

4,95

0,0078

38,4

46

c.100

6

84 x 0,30

4,4 - 05,3

0,8

3,30

0,0068

57,6

65

c.100

10

80 x 0,40

5,7 - 06,8

1,0

1,91

0,0065

96,0

115

c.100

16

128 x 0,40

6,7 - 08,1

1,0

1,21

0,0053

153,6

170

c.100

25

200 x 0,40

8,4 - 10,2

1,2

0,780

0,0050

240

260

CUT

35

280 x 0,40

9,7 - 11,7

1,2

0,554

0,0043

336

360

CUT

50

400 x 0,40

11,5 - 13,9

1,4

0,386

0,0042

480

515

CUT

70

356 x 0,50

13,2 - 16,0

1,4

0,272

0,0036

672

710

CUT

95

485 x 0,50

15,1 - 18,2

1,6

0,206

0,0036

912

940

CUT

120

614 x 0,50

16,7 - 20,2

1,6

0,161

0,0032

1152

1180

CUT

150

765 x 0,50

18,6 - 22,5

1,8

0,129

0,0032

1440

1600

CUT

185

944 x 0,50

20,6 - 24,9

2,0

0,106

0,0032

1776

2100

CUT

240

1225 x 0,50

23,5 - 28,4

2,2

0,0801

0,0031

2304

3015

CUT
