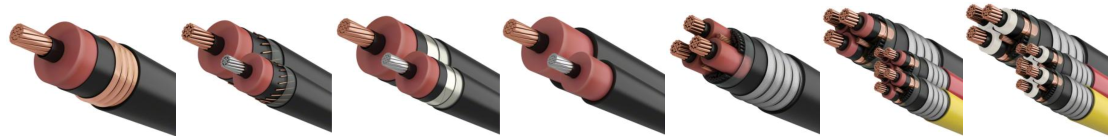

MV105 Cable
Products Visitors:412
Products description:


Product Name: MV105 Cable

Application: Used for power and distribution circuits in industrial and commercial installations,power circuits in generating plants where line to ground fault current are within shield capabilities. Can be used in wet or dry locations,installed in raceways,duct and open air,aerially or directly buried as permitted by NEC.

Standards: UL1072 Medium Voltage Power Cables,ICEA S-93-639/NEMA WC74 5kV-46kV Shielded Power Cables,ICEA S-97-682 Utility Shielded Power Cables Rated 5kV-46kV,AEIC CS8 Specification for Extruded Dielectric Shielded Power Cables Rated 5kV-46kV.

Example: MV-105 Power Cable,8kV,3 cores,CU/EPR/CTS/CPE

Standards: ICEA S-93-639/NEMA WC71/UL 1072

Maximum Operating Voltage: 5kV-25kV 100% and 133% IL Maximum conductor operation temperatures,wet and dry locations normal is 105℃,emergency is 140℃,short circuit is 250℃.

Construction: Conductor: Soft annealed uncoated copper compacted Class B per ASTM B496 or hard drawn Aluminum-1350 compacted Class B per ASTM B400.

Conductor Shield: Semi conducting cross-linked polyethylene (XLPE).

Insulation: Thermoset ethylene propylene rubber (EPR). On request, Amorphous EPR.

Insulation Shield: Semi conducting cross-linked polyethylene (XLPE).

Metallic Shield: Soft annealed tinned copper tape, 5 mil thick, 25% minimum overlap.

Grounding (Optional): One or three tinned copper or covered conductors cabled with phase conductors.

Assembly: Conductors cabled with non-hygroscopic fillers, as required and binder tape.

Jacket: Black sunlight resistance and flame retardant chlorinated polyethylene (CPE) compound.100% Insulation levels(115 mil)


Size

Number of Strands

Conductor Nominal

Jacket Thickness

Approximate Outside Diameter

Approximate Net Weight

Copper

Aluminum

AWG of kcmil

nos

in

mil

in

lb/kft

6

7

0.17

80

1.39

1108

174

4

7

0.21

80

1.48

1343

277

2

7

0.27

80

1.6

1690

441

1

19

0.30

80

1.67

1955

555

1/0

19

0.34

110

1.82

2364

701

2/0

19

0.38

110

1.9

2717

884

3/0

19

0.42

110

2

3185

1115

4/0

19

0.48

110

2.12

3724

1404

250

37

0.52

110

2.24

4258

1661

300

37

0.57

110

2.35

4851

1991

350

37

0.62

110

2.44

5445

2326

400

37

0.66

110

2.54

6070

2656

500

37

0.74

140

2.82

7510

3320
