NVV Cable
Products Visitors:602
Products description:

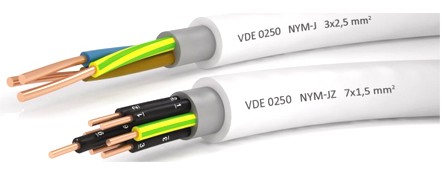

Product Name: NVV Cable

General Description: +5-70 during installation,-30-70 fixed installed,150 as short circuit of max 5 seconds. Voltage 300/500V,Ispitni napon 2000V,minimal inner bending radius is 6D,behaviour in fire according to IEC 60332-1.

Application: NVV cable suitable for household and industrial usage. Laid on or under plaster, in walls or concrete, without special mechanical protection, but not in dry or pre-stressed concrete. Suitable for dry, same as damp or wet environment; for internal or external application (only if the NVV cable is protected against direct sunlight).

Standards: IEC 60227-4,DIN VDE 0250 part 204,HRN HD 21.4 S2

Construction: Bare copper conductor according to IEC 60228/DIN VDE 0295/HD 383,PVC compound T11 according to DIN VDE 0281 part 1/HD 21.1 S4,cores enveloped in non vulcanized rubber filler or plastic compound filler,PVC compound TM 1 according to DIN VDE 0281 part 1/HD 21.1 S4.

Color: Grey (RAL 7035)


Dimensions – number of cores x conductor cross-section

Construction

Construction of individual conductor

External diameter

Conductor resistance at 20 °C

Specific. el. resistance of insulation at 70 °C

Short circuit current 1s

Permited tensile load

Cable weight

Packing





nominal

min-max.

max.

min.

nominal

max.

cca



mm²



n x mm

mm

Ω/km

MΩkm

kA

N

kg/km



1 x 1,5

RE

1 x 1,38

5,2 - 6,2

12,10

0,0100

0,17

75

45

CUT

1 x 2,5

RE

1 x 1,78

5,8 - 6,8

7,41

0,0094

0,29

125

70

CUT

1 x 4

RE

1 x 2,26

6,4 - 7,6

4,61

0,0087

0,46

200

80

CUT

1 x 6

RE

1 x 2,70

6,8 - 8,2

3,08

0,0074

0,69

300

105

CUT

1 x 10

RE

1 x 3,5

8,0 - 9,4

1,83

0,0072

1,15

500

155

CUT

1 x 16

RM

7 x 1,70

9,4 - 11,0

1,15

0,0053

1,84

800

230

CUT

1 x 25

RM

7 x 2,13

12,2 - 13,3

0,73

0,0051

2,88

1250

325

CUT

2 x 1,5

RE

1 x 1,38

8,4 - 9,8

12,10

0,0100

0,17

150

115

c.100

2 x 2,5

RE

1 x 1,78

9,6 - 11,0

7,41

0,0094

0,29

250

190

c.100

2 x 4

RE

1 x 2,26

11,0 - 12,5

4,61

0,0087

0,46

400

-

CUT

3 x 1,5

RE

1 x 1,38

8,8 - 10,5

12,10

0,0100

0,17

225

135

c.50, c.100

3 x 2,5

RE

1 x 1,78

10,0 - 11,5

7,41

0,0094

0,29

375

190

c.100, B500

3 x 4

RE

1 x 2,26

11,5 - 13,0

4,61

0,0087

0,46

600

265

CUT

3 x 6

RE

1 x 2,70

12,0 - 15,0

3,08

0,0074

0,69

900

315

CUT

3 x 10

RE

1 x 3,5

16,0 - 18,0

1,83

0,0072

1,15

1500

465

CUT

4 x 1,5

RE

1 x 1,38

9,5 - 11,0

12,10

0,0100

0,17

300

160

c.100

4 x 2,5

RE

1 x 1,78

11,0 - 12,5

7,41

0,0094

0,29

500

230

c.100

4 x 4

RE

1 x 2,26

12,5 - 14,5

4,61

0,0087

0,46

800

330

c.100, CUT

4 x 6

RE

1 x 2,70

14,5 - 16,5

3,08

0,0074

0,69

1200

460

c.50, CUT

4 x 10

RE

1 x 3,5

16,5 - 19,0

1,83

0,0072

1,15

2000

690

CUT

4 x 16

RM

7 x 1,70

20,5 - 23,5

1,15

0,0053

1,84

3200

1090

CUT

4 x 25

RM

7 x 2,13

25,0 - 28,5

0,73

0,0051

2,88

5000

1640

CUT

4 x 35

RM

7 x 2,52

27,5 - 32,0

0,52

0,0045

4,02

7000

2090

CUT

5 x 1,5

RE

1 x 1,38

9,9 - 12,0

12,10

0,0100

0,17

375

190

c.100, dr500

5 x 2,5

RE

1 x 1,78

11,5 - 13,5

7,41

0,0094

0,29

625

270

c.100, dr500

5 x 4

RE

1 x 2,26

14,0 - 16,5

4,61

0,0087

0,46

1000

410

c.100, CUT

5 x 6

RE

1 x 2,70

15,5 - 18,0

3,08

0,0074

0,69

1500

540

c.50, CUT

5 x 10

RE

1 x 3,5

18,0 - 21,0

1,83

0,0072

1,15

2500

850

CUT

5 x 10

RM

7 x 1,35

18,5 - 21,5

1,83

0,0065

1,15

2500

870

CUT

5 x 16

RM

7 x 1,70

22,5 - 26,0

1,15

0,0053

1,84

4000

1350

CUT

5 x 25

RM

7 x 2,13

27,5 - 31,5

0,73

0,0051

2,88

6250

1990

CUT

7 x 1,5

RE

1 x 1,38

11,0 - 13,0

12,10

0,0100

0,17

525

235

c.100, CUT

10 x 1,5

RE

1 x 1,38

13,9 - 15,6

12,10

0,0100

0,17

750

330

CUT

12 x 1,5

RE

1 x 1,38

14,2 - 16,1

12,10

0,0100

0,17

900

400

CUT

7 x 2,5

RE

1 x 1,78

12,7 -14,3

7,41

0,0094

0,29

875

350

CUT
