NYBY Cable

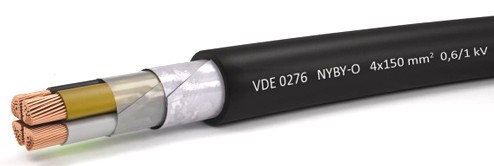

Original Image

Products Visitors:1461

Product Name:NYBY Cable

Products description:

Product Name: NYBY Cable

General Description: 0.6/1KV,flexing temperature is -5℃-50℃,stationary temperature is -30℃-70℃,test voltage is 4KV,minimum bending radius is 15D for single core,12D for multi core.

Application:NYBY cable are applied for power distribution in city networks, industrial plants and on the places where mechanical damages are expected. May be laid in the ground, cable ducts and in open air.

Construction: Copper conductor,PVC insulation,inner PVC or rubber mass,two steel tapes armor,PVC outer jacket.

Standards: DIN VDE 0295,DIN VDE 0207/4,DIN VDE 0293,DIN VDE 0472,IEC 332-1.

Dimensions - Number of cores x cross-section	Design	Construction of the individual keep the handlers safe	Outer Diameter	Insulation Thickness	Shell Thickness	Resistance to keep the handlers safe at 20 ° C	Cu Weight	Cable Weight	Packaging
		rated	about	rated	rated	max.		about
N x mm²		n x mm	mm	mm	mm	Ω/km	kg/km	kg/km
2 x 1,5	RE	1 x 1,37	12,9	0,8	1,8	12,1	28,8	286	REZ
2 x 2,5	RE	1 x 1,74	13,7	0,8	1,8	7,41	48	423	REZ
2 x 4	RE	1 x 2,2	15,3	1	1,8	4,61	76,8	420	REZ
2 x 6	RE	1 x 2,7	16,3	1	1,8	3,08	115,2	493	REZ
2 x 10	RM	7 x 1,34	18,7	1	1,8	1,83	192	668	REZ
2 x 16	RM	7 x 1,70	20,9	1	1,8	1,15	307,2	873	REZ
2 x 25	RM	7 x 2,20	23,5	1,2	1,8	0,727	480	1201	REZ
2 x 35	RM	7 x 2,55	25,7	1,2	1,8	0,524	672	1480	REZ
2 x 50	RM	7 x 3,00	28,7	1,4	1,8	0,387	960	1881	REZ
2 x 70	RM	13 x 2,70	32,3	1,4	1,9	0,268	1344	2478	REZ
2 x 95	RM	17 x 2,70	37,9	1,6	2,1	0,193	1824	3378	REZ
2 x 120	RM	18 x 3,00	40,9	1,6	2,2	0,153	2304	4167	REZ
2 x 150	RM	22 x 3,00	44,9	1,8	2,3	0,124	2880	5091	REZ
2 x 185	RM	32 x 2,70	50,5	2	2,4	0,0991	3552	6272	REZ
2 x 240	RM	36 x 3,00	56,7	2,2	2,6	0,0754	4608	7945	REZ
2 x 300	RM	45 x 3,00	61,9	2,4	2,8	0,0601	5760	9628	REZ
