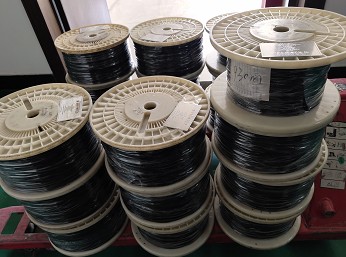

PFA Coated Stainless Steel Wire Ropes


Products Visitors:149
Products description:



PFA Type 1 : SSPFA 1/32"
Core Material : Annealed Stainless Steel
Core Sructure : 7×7×0.09mm
Core OD(mm) : 0.79
Jacket Material : PFA
Jacket Thickness(mm) : 0.15
OD(mm) : 1.1
Temp: -55-260
Breaking Force 80 kgs / 175 Ibs


PFA Type 2 : SSPFA 3/64"
Core Material : Annealed Stainless Steel
Core Sructure : 7×7×0.132mm
Core OD(mm) : 1.19
Jacket Material : PFA
Jacket Thickness(mm) : 0.15
OD(mm) : 1.5
Temp: -55-260
Breaking Force 125 kgs / 275 Ibs


PFA Type 3 : SSPFA 1/16"
Core Material : Annealed Stainless Steel
Core Sructure : 7×7×0.176mm
Core OD(mm) : 1.59
Jacket Material : PFA
Jacket Thickness(mm) : 0.15
OD(mm) : 1.9
Temp: -55-260
Breaking Force 220kgs / 480 Ibs


PFA Type 4 : SSPFA 0.054"
Core Material : Annealed Stainless Steel
Core Sructure : 7×7×0.153mm
Core OD(mm) : 1.38
Jacket Material : PFA
Jacket Thickness(mm) : 0.15
OD(mm) : 1.68
Temp: -55-260
Breaking Force 160kgs / 350 Ibs
