RDP2 Type Single Phase Heating Cable
Products Visitors:261
Products description:


Product Name: RDP2 Type Single Phase Constant Power Electric & Heating Cable

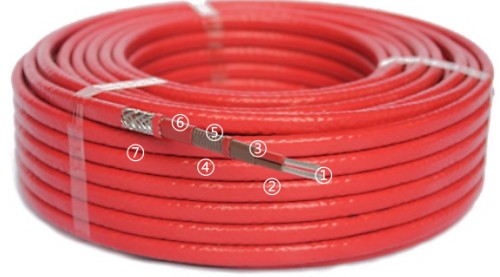

Construction: Tinned copper stranded wire,fluoroplastic insulation,skeleton layer,nickel chromium alloy heating wire,fluoroplastic inner sheath,metal shielding layer,fluoroplastic strength (anticorrosion) outher sheath.


Product Model

Rated Power (w/m)

Max.Length (m)

Fluid to Maintain Highest Temperature ()

Highest Temperature Resistance

RDP2(Q)-J3-10

10

210

65

205

RDP2(Q)-J3-20

20

180

90

205

RDP2(Q)-J3-30

30

150

120

205

RDP2(Q)-J3-40

40

130

150

205


Model

RDP2(Q)-J3

Product Specification

6.0*9.0 mm

Temperature Range

0-150

Heat Resistance Temperature

205

Standard Power

10-40 W/M

Rated Voltage

220V

Normal Insulation Resistance

20 MΩ

Protection Grade

IP 54

Dielectric Strength

2000V,50Hz/1 min

Insulation Materials

F46 fluoroplastic

Applicable Occasions

Suitable for T group sites of one factory area or two with explosive air mixture direct hit is not affected by external forces,it’s mainly used for various pipelines,frost,heat preservation,maintain highest temperature 150 which is suitable for one factory area or two with explosive gas.
