RDP3 Type Parallel Three-phase Heating Cable
Products description:


Product Name: RDP3 Type Parallel Three-phase Constant Power Electric & Heating Cable

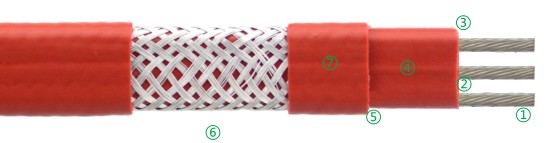

Construction: Tinned copper stranded wire,fluoroplastic insulation,skeleton layer,nickel chromium alloy heating wire,fluoroplastic outer sheath,metal shielding layer,fluoroplastic strength ( anticorrosion) sheath.


Ordinary

Reinforced

Rated Power (w/m)

Max.Length (m)

Fluid to Maintain Highest Temperature ()

Outer Sheath Color

RDP3-J3-20

RDP3(Q)-J3-20

20

330

60

Red

RDP3-J3-30

RDP3(Q)-J3-30

30

280

80

Red

RDP3-J3-40

RDP3(Q)-J3-40

40

275

110

Red

RDP3-J3-50

RDP3(Q)-J3-50

50

250

120

Red

RDP3-J3-60

RDP3(Q)-J3-60

60

230

130

Red


Model

RDP3(Q)-J3

Product Specification

6.3*9.5 mm

Temperature Range

0-120

Heat Resistance Temperature

205

Standard Power

30,40,50,60 W/M

Rated Voltage

380V

Normal Insulation Resistance

20 MΩ

Protection Grade

IP 54

Dielectric Strength

2000V,50Hz/1 min

Insulation Materials

F46 fluoroplastic

Applicable Occasions

Suitable for T group sites of one factory area or two with explosive air mixture direct hit is not affected by external forces,it’s mainly used for various pipelines,frost,heat preservation,maintain highest temperature 150 which is suitable for one factory area or two with explosive gas.
