XHHW-2 Cable
Products Visitors:260
Products description:

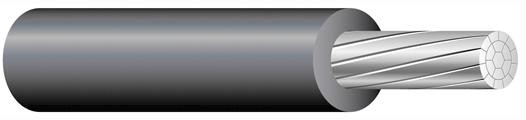

Product Name: XHHW-2 Cable

UL Number: E488723

General Description: 600V,UL listed cable

Application:Type XHHW-2 conductors are primarily used in conduit, cable tray or other recognized raceways for service,feeders, and branch circuit wiring as specified in the National Electrical Code. XHHW-2 conductors are sunlight resistant and may be used in wet or dry locations at temperatures not to exceed 90°C. This cable can be installed without the need for pulling lubricant.

Standards: UL 44,ICEA S-95-658

Construction: Conductors are AA-8000 series aluminum alloy compact stranded,insulation is an abrasion,moisture and heat resistant black XLPE.


Type

Size

Stranding

Conductor Diameter

Insulation Thickness

Overall Diameter

Weight

Ampacity

 at 90C *

AWG

Nos

(inches)

(inches)

(inches)

LBS/1000'

A

AL-XHHW-8

8

7

0.134

0.045

0.227

30

45

AL-XHHW-6

6

7

0.169

0.045

0.262

42

60

AL-XHHW-4

4

7

0.213

0.045

0.306

68

75

AL-XHHW-2

2

7

0.268

0.045

0.361

86

100

AL-XHHW-1

1

7

0.299

0.550

0.412

110

115

AL-XHHW-1/0

1/0

18

0.335

0.550

0.449

134

135

AL-XHHW-2/0

2/0

18

0.378

0.550

0.489

163

150

AL-XHHW-3/0

3/0

18

0.423

0.550

0.536

200

175

AL-XHHW-4/0

4/0

18

0.476

0.550

0.588

247

205

AL-XHHW-250

250

35

0.520

0.650

0.653

296

230

AL-XHHW-300

300

35

0.571

0.650

0.703

359

255

AL-XHHW-350

350

35

0.614

0.650

0.749

401

280

AL-XHHW-400

400

35

0.657

0.650

0.792

453

305

AL-XHHW-500

500

35

0.736

0.650

0.869

556

350

AL-XHHW-600

600

58

0.816

0.800

0.979

679

385

AL-XHHW-700

700

58

0.877

0.800

1.040

782

420

AL-XHHW-750

750

58

0.909

0.800

1.071

833

435

AL-XHHW-900

900

58

0.999

0.800

1.162

987

480

AL-XHHW-1000

1000

58

1.059

0.800

1.223

1090

500
