Product Name: AAC Conductor
Application:AAC Conductor ( All Aluminum Conductor ) is widely used in the overhead power transimission lines and distribution system, and AAC conductor is one of the main products to form electrified wire network.
Standards:ASTM B 231, BS 215 Part 1, IEC 61089, DIN 48201, CSA C 49, JIS C 3109, etc.

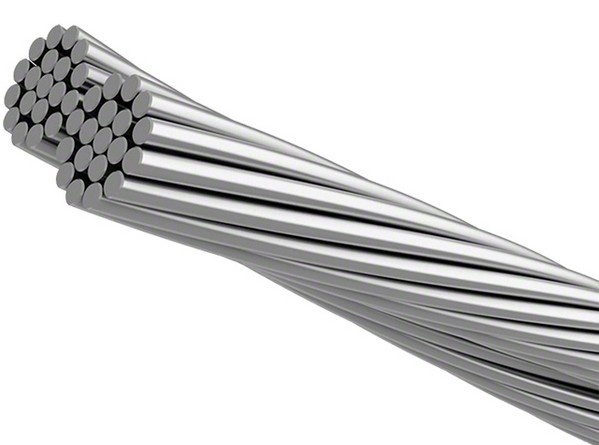

Construction: AAC is a concentric-lay-stranded conductor consisting of aluminum alloy 1350-H19 wires available in both single-layer and multi-layer constructions.
Code Name |
AWG or MCM |
Cross Section (mm²) |
Stranding & Wire Diam. (mm) |
Overall Diam. (mm) |
Linear Mass (kg/km) |
Nominal Breaking Load (Dan) |
Max.D.C. Resistance at 20℃ (Ω/km) |
Current Rating (A) |
Peachbell |
6 |
13.29 |
7/1.554 |
4.67 |
37 |
249 |
2.1692 |
72 |
Rose |
4 |
21.16 |
7/1.961 |
5.89 |
58 |
396 |
1.3624 |
104 |
Iris |
2 |
33.61 |
7/2.474 |
7.42 |
93 |
597 |
0.8577 |
136 |
Pansy |
1 |
42.39 |
7/2.776 |
8.33 |
117 |
732 |
0.6801 |
157 |
Poppy |
1/0 |
53.48 |
7/3.119 |
9.36 |
147 |
873 |
0.5390 |
180 |
Aster |
2/0 |
67.42 |
7/3.503 |
10.51 |
186 |
1100 |
0.4276 |
207 |
Phlox |
3/0 |
85.03 |
7/3.932 |
11.80 |
234 |
1347 |
0.3390 |
237 |
Oxlip |
4/0 |
107.23 |
7/4.417 |
13.26 |
296 |
1698 |
0.2688 |
273 |
Valerian |
250 |
126.71 |
19/2.913 |
14.57 |
349 |
2062 |
0.2275 |
305 |
Sneezewort |
250 |
126.71 |
7/4.80 |
14.40 |
349 |
2007 |
0.2275 |
300 |
Laurel |
266.8 |
135.16 |
19/3.01 |
15.05 |
373 |
2200 |
0.2133 |
317 |
Daisy |
266.8 |
135.16 |
7/4.96 |
14.90 |
373 |
2141 |
0.2133 |
313 |
Peony |
300 |
152.00 |
19/3.193 |
15.97 |
419 |
2403 |
0.1896 |
340 |
Tulip |
336.4 |
170.45 |
19/3.381 |
16.91 |
470 |
2695 |
0.1691 |
364 |
Daffodil |
350 |
177.35 |
19/3.447 |
17.24 |
489 |
2804 |
0.1625 |
373 |
Canna |
397.5 |
201.42 |
19/3.673 |
18.36 |
555 |
3184 |
0.1431 |
401 |
Goldentuft |
450 |
228.00 |
19/3.909 |
19.55 |
629 |
3499 |
0.1264 |
432 |
Syringa |
477 |
241.68 |
37/2.882 |
20.19 |
666 |
3849 |
0.1193 |
449 |
Cosmos |
477 |
241.68 |
19/4.023 |
20.12 |
666 |
3708 |
0.1193 |
447 |
Hyacinth |
500 |
253.35 |
37/2.951 |
20.65 |
698 |
4035 |
0.1138 |
461 |
Zinnia |
500 |
253.35 |
19/4.12 |
20.60 |
698 |
3888 |
0.1138 |
459 |
Dahlia |
556.5 |
282.00 |
19/4.346 |
31.73 |
777 |
4327 |
0.1022 |
489 |
Mistletoe |
556.5 |
282.00 |
37/3.114 |
21.79 |
777 |
4362 |
0.1022 |
493 |
Meadowsweet |
600 |
304.00 |
37/3.233 |
22.63 |
838 |
4703 |
0.0948 |
513 |
Orchid |
636 |
322.25 |
37/3.33 |
23.31 |
888 |
4985 |
0.0894 |
531 |
Heuchera |
650 |
329.40 |
37/3.37 |
23.59 |
907.4 |
5170 |
0.0875 |
538 |
Flag |
700 |
354.71 |
61/2.72 |
24.48 |
978 |
5146 |
0.0813 |
563 |
Verbena |
700 |
354.71 |
37/3.493 |
24.45 |
978 |
5487 |
0.0813 |
562 |
Nasturtium |
715.5 |
362.58 |
61/2.75 |
24.76 |
1000 |
5874 |
0.0795 |
570 |
Violet |
715.5 |
362.58 |
37/3.533 |
24.74 |
1000 |
5609 |
0.0795 |
570 |
Cattail |
750 |
380.00 |
61/2.817 |
25.35 |
1048 |
5985 |
0.0759 |
586 |
Petunia |
750 |
380.00 |
37/3.617 |
25.32 |
1048 |
5875 |
0.0759 |
585 |
Lilac |
795 |
402.84 |
61/2.90 |
26.11 |
1111 |
6345 |
0.0715 |
607 |
Arbutus |
795 |
402.84 |
37/3.724 |
26.06 |
1111 |
6232 |
0.0715 |
605 |
Snapdragon |
900 |
456.06 |
61/3.086 |
27.78 |
1257 |
6978 |
0.0632 |
653 |
Cockscomb |
900 |
456.06 |
37/3.962 |
27.73 |
1257 |
6848 |
0.0632 |
651 |
Goldenrod |
954 |
483.42 |
61/3.177 |
28.60 |
1333 |
7896 |
0.0596 |
675 |
Magnolia |
954 |
483.42 |
37/4.079 |
28.55 |
1333 |
7258 |
0.0596 |
674 |
Camellia |
1000 |
506.71 |
61/3.251 |
29.36 |
1397 |
7753 |
0.0569 |
693 |
Hawkweed |
1000 |
506.71 |
37/4.176 |
29.23 |
1397 |
7608 |
0.0569 |
693 |
Larkspor |
1033.5 |
523.68 |
61/3.307 |
29.76 |
1444 |
8012 |
0.0550 |
707 |
Bluebell |
1033.5 |
523.68 |
37/4.244 |
29.72 |
1444 |
7863 |
0.0550 |
706 |
Marigold |
1113 |
563.93 |
61/3.432 |
30.89 |
1555 |
8628 |
0.0511 |
738 |
Hawthorn |
1192.5 |
604.26 |
61/3.551 |
31.05 |
1666 |
9245 |
0.0477 |
767 |
Narcissus |
1272 |
644.51 |
61/3.668 |
33.02 |
1777 |
9861 |
0.0477 |
797 |
Columbine |
1351 |
684.84 |
61/3.78 |
34.02 |
1888 |
10478 |
0.0421 |
825 |
Carnation |
1431 |
725.10 |
61/3.89 |
35.01 |
1999 |
10768 |
0.0398 |
854 |
Gladiolus |
1510.5 |
765.35 |
61/4.00 |
36.09 |
2110 |
11365 |
0.0376 |
881 |
Coreopsis |
1590 |
805.68 |
61/4.099 |
36.51 |
2221 |
11964 |
0.0358 |
907 |
Jessamine |
1750 |
886.71 |
61/4.302 |
38.73 |
2445 |
13168 |
0.0325 |
959 |
Cowslip |
2000 |
1013.42 |
91/3.76 |
41.40 |
2791 |
15300 |
0.0285 |
1035 |
Sagebrush |
2250 |
1140.00 |
91/3.99 |
43.89 |
3166 |
16700 |
0.0255 |
1108 |
Lupine |
2500 |
1266.67 |
91/4.21 |
46.30 |
3524 |
18700 |
0.0230 |
1178 |
Bitterroot |
2750 |
1393.00 |
91/4.42 |
48.62 |
3872 |
20500 |
0.0209 |
1242 |
Trilium |
3000 |
1520.13 |
127/3.90 |
50.75 |
4232 |
22500 |
0.0192 |
1308 |
Blue Bonnet |
3500 |
1773.50 |
127/4.21 |
54.80 |
4985 |
26200 |
0.0166 |
1425 |

-
