Product Name: ACAR Conductor
Application:ACAR conductor is Used as bare overhead transmission cable and as primary and secondary distribution cable. A good strength-to-weight ratio makes ACAR applicable where both ampacity and strength are prime considerations in line design; for equal weight, ACAR offers higher strength and ampacity than ACSR.
Standards: ASTM B 339,IEC 1089,BS 3242,DIN 48201 etc.

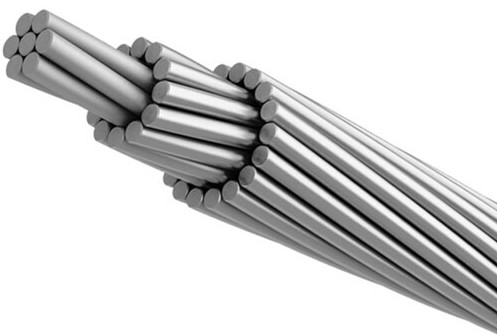

Construction:Aluminum 1350-H19 wires, concentrically stranded around aluminum-alloy 6201-T81 core. Although the alloy strands generally comprise the core of the conductor, in some constructions they are distributed in layers throughout the aluminum1350-H19 strands.
Size
kcmil
Stranding number
&diamieter(inch)
Cross section area(Square inch)
Nominal conductor diameter(inch)
1350
6201
1350
6201
Total
500
15*0.1622
4*0.1622
0.3099
0.0827
0.3926
0.811
500
12*0.1622
7*0.1622
0.2480
0.1446
0.3926
0.811
500
33*0.1162
4*0.1162
0.3500
0.0424
0.3924
0.813
500
30*0.1162
7*0.1162
0.3182
0.0742
0.3924
0.813
500
24*0.1162
13*0.1162
0.2545
0.1379
0.3924
0.813
500
18*0.1162
19*0.1162
0.1909
0.2015
0.3924
0.813
503.6
15*0.1628
4*0.1628
0.3122
0.0833
0.3955
0.814
587.2
15*0.1758
4*0.1758
0.3641
0.0971
0.4612
0.879
649.5
18*0.1325
19*0.1325
0.2482
0.2620
0.5102
0.927
653.1
12*0.1854
7*0.1854
0.3240
0.1890
0.5130
0.927
739.8
18*0.1414
19*0.1414
0.2827
0.2983
0.5810
0.990
853.7
30*0.1519
7*0.1519
0.5437
0.1268
0.6705
1.063
853.7
24*0.1519
13*0.1519
0.4349
0.2358
0.6705
1.063
927.2
24-0.1583
13*0.1583
0.4723
0.2559
0.7282
1.108
1024.5
30*0.1664
7*0.1664
0.6524
0.1522
0.8046
1.165
1024.5
24*0.1664
13*0.1664
0.5219
0.2827
0.8046
1.165

-
