Product Name:ACSR Conductor

Products description:

Product Name: ACSR Conductor

Application:ACSR Conductor (Aluminum Conductors Steel Reinforced) is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Standards: IEC 61089,ASTM B232,BS 215 part 2,DIN 48204.

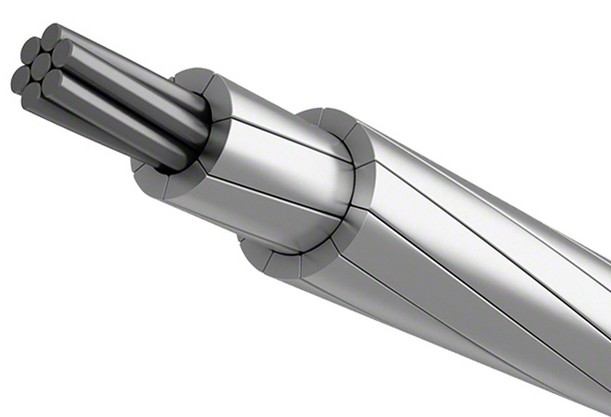

Construction: ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn 1350H19 aluminum wire stranded with a high strength coated steel core. The core maybe single wire or stranded depending on the size.

Code Name	Nominal Aluminum Area mm²	Stranding Structure				Total Sectional Area	Overall Diameter
Code Name	Nominal Aluminum Area mm²	Al. No.	Al. Dia.	St. No.	St. Dia	mm²	mm
Mole	10	6	1.50	1	1.50	12.39	4.50
Squirrel	20	6	2.11	1	2.11	24.43	6.33
Gopher	25	6	2.36	1	2.36	30.62	7.08
Weasel	30	6	2.59	1	2.59	36.88	7.77
Fox	35	6	2.79	1	2.79	42.77	8.37
Ferret	40	6	3.00	1	3.00	49.48	9.00
Rabbit	50	6	3.35	1	3.35	61.70	10.05
Mink	60	6	3.66	1	3.66	73.71	10.98
Skunk	60	12	2.59	7	2.59	100.30	12.95
Beaver	70	6	3.99	1	3.99	87.29	11.97
Horse	70	12	2.79	7	2.79	116.20	13.95
Racoon	75	6	4.10	1	4.10	92.40	12.30
Otter	80	6	4.22	1	4.22	97.86	13.98
Cat	90	6	4.50	1	4.50	111.30	15.90
Hare	100	6	4.72	1	4.72	122.50	17.50
Dog	100	6	4.72	7	1.57	118.50	14.15
Hyena	100	7	4.39	7	1.93	126.20	14.57
Leopard	125	8	5.28	7	1.75	148.10	15.81
Coyote	125	26	2.54	7	1.91	152.20	15.89
Congar	125	18	3.05	1	3.05	137.50	15.25
Tiger	125	30	2.36	7	2.36	161.70	16.52
Dingo	150	18	3.35	1	3.35	167.50	16.75
Wolf	150	30	2.59	7	2.59	194.90	18.13
Caracal	175	18	3.61	1	3.61	194.50	18.05
Lynx	175	30	2.79	7	2.79	326.20	19.53
Jaguar	200	18	3.86	1	3.86	222.30	19.30
Panther	200	30	3.00	7	3.00	261.50	21.00
Lion	225	30	3.18	7	3.18	294.20	22.26
Bear	250	30	3.35	7	3.35	325.60	23.45
Goat	300	30	3.71	7	3.71	400.00	25.97
Sheep	350	30	3.99	7	3.99	461.40	27.93
Antilope	350	54	2.97	7	2.97	421.50	26.73
Bizon	350	54	3.00	7	3.00	431.30	27.00
Deer	400	30	4.27	7	4.27	529.50	28.89
Zebra	400	54	3.18	7	3.18	484.50	28.62
ELK	450	30	4.50	7	4.50	588.30	31.50
Camel	450	54	3.35	7	3.35	536.80	30.15
Moose	500	54	3.53	7	3.53	597.20	31.77
Finch	500	54	3.65	19	2.29	642.90	33.35
