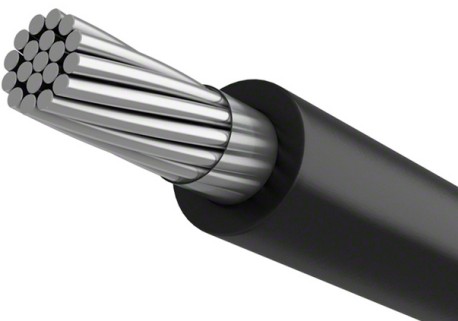

Product Name:Covered Line Wire

Products description:

Product Name: Covered Line Wire

General Description: 600V,aluminum alloy 1350-H19,6201-T81 or ACSR conductors,LDPE,HDPE or XLPE weather proofing insulation.

Standards: ICEA S-70-547,ASTM B-230.B-231,232,B399,B498

Application: Used primarily for overhead and distribution lines,installed on insulators,otherwise treated as bare conductor in overhead lines.

Code	AWG Kcmil	Wires Nos	Insulation Thickness mils	Nominal OD		Rated Strength lbs	Weight lbs/1000FT				Ampacity A	Standard Packing
				Bare In	OD In		Alum.	Total				Coils	Reels
				Bare In	OD In		Alum.	LDPE	HDPE	XLPE		FT	FT
AAC
Plum	6	7	30	0.184	0.244	563	24.6	34.04	34.45	34.45	100	4000	10100
Apricot	4	7	30	0.225	0.285	881	39.1	50.78	51.28	51.28	135	2500	7000
Peach	2	7	45	0.292	0.382	1350	62.2	84.73	85.71	85.71	180	1500	7500
Nectanne	1	7	45	0.332	0.452	1740	78.4	112.43	113.91	113.91	210	1200	6000
Quince	1/0	7	60	0.368	0.488	1990	99.1	136.88	138.52	138.52	240	1000	4700
Haw	1/0	19	60	0.373	0.493	2160	99.1	137.41	139.07	139.07	240	1000	4700
Orange	2/0	7	60	0.464	0.584	2510	125	173.3	175.4	175.4	280	---	3800
Ironwood	2/0	19	60	0.419	0.539	2670	125	168.27	170.15	170.15	280	---	3800
Fig	3/0	7	60	0.522	0.642	3035	157	212.03	214.41	214.41	320	---	4400
Lemon	3/0	19	60	0.470	0.590	3310	157	205.98	208.11	208.11	320	---	4400
Olive	4/0	7	60	0.522	0.642	3810	199	254.03	256.41	256.41	370	---	3500
Pomegranate	4/0	19	60	0.528	0.648	4020	199	254.74	257.16	257.16	370	---	3800
Sassafras	250	19	60	0.574	0.694	4505	234.3	295.59	298.25	298.25	420	---	3000
Mulberry	266.8	19	60	0.575	0.695	4810	250.1	311.52	314.18	314.18	430	---	3000
Basswood	300	19	60	0.628	0.748	5300	282	350.04	352.99	352.99	478	---	2500
Anona	336.4	19	60	0.666	0.786	5945	315.5	388.43	391.59	391.59	495	---	2500
Chinquapin	350	19	60	0.678	0.798	6150	328	402.5	405.73	405.73	525	---	2000
Molles	397.5	19	80	0.724	0.884	6885	373	475.28	479.71	479.71	550	---	2000
Sumac	450	37	80	0.772	0.932	8200	422	532.06	536.83	536.83	600	---	3300
Huckleberry	477	37	80	0.795	0.955	8400	447	560.85	565.79	565.79	810	---	3300
AAAC
Plum	6	7	30	0.198	0.258	1110	28.5	40	41	41	78	2700	8800
Apricot	4	7	30	0.25	0.31	1760	45.4	60	61	61.9	145	2000	6200
Peach	2	7	45	0.316	0.406	2800	72.2	99	99	100	190	1000	6700
Nectanne	1/0	7	60	0.348	0.468	4460	114.9	160	166	166	250	1000	4000
Quince	2/0	7	60	0.447	0.567	5390	144.9	196	203	203	290	---	3400
Haw	3/0	7	60	0.502	0.622	6790	182.5	241	249	249	335	---	3400
Orange	4/0	7	60	0.563	0.683	8560	230.2	298	307	307	385	---	3000
ACSR
Walnut	6	6/1	30	0.198	0.258	1190	24.5	47	48	48	105	2700	8800
Butternut	4	6/1	30	0.25	0.31	1860	39	72	72	73	135	2200	6200
Hickory	4	7/1	30	0.257	0.317	2360	39	81	82	83	135	2000	6000
Pignut	2	6/1	45	0.316	0.406	2850	62	118	119	120	180	1200	6700
Beech	2	7/1	45	0.329	0.419	3640	62	134	134	136	180	1100	6700
Chestnut	1	6/1	45	0.525	0.445	3550	78.2	146	147	148	210	1000	5300
Almond	1/0	6/1	60	0.398	0.518	4380	98.6	190	191	193	235	1000	4000
Pecan	2/0	6/1	60	0.447	0.567	5300	124.3	234	235	235	290	---	3400
Filbert	3/0	6/1	60	0.502	0.622	6620	156.8	289	291	294	305	---	3900
Buckeye	4/0	8/1	60	0.563	0.683	8350	197.7	357	360	363	345	---	3000
Hackberry	266.8	18/1	60	0.609	0.729	6880	250.4	353	355	359	356	---	2600
