DXW Low Temperature Self-limiting Heating Cable
Products description:


Product Name: DXW Low Temperature Self-limiting Electric & Heating Cable

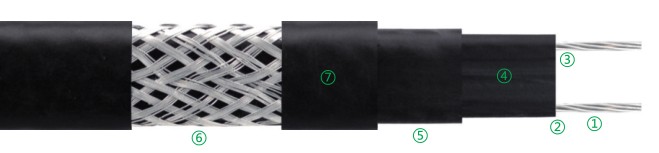

Construction: Tin copper wire,low resistance transition layer,PTC core zone,evolutionary polyolefin insulation (self-develop),amend polyolefin insulation ( self-develop),metal shielding net,low smoke zero halogen outer sheath (customizable fluoroplastic sheath).

Application: Low temperature self-limiting electric & heating cable is widely used in petroleum,chemical,steel,electricity and other industrial enterprises of pipeline,storage tank of heat preservation,anticoagulation,antifreeze. The cable is suitable for common area,danger area and corrosion area,maintenance temperature of media is 0-85.Enhanced explosion-proff & anti-corrosion type of electric & heating cable is commonly used to places for explosion-proof & anti-corrosion,low environmental humidity.

Product Model: DXW-J,DXW-P,DXW-F,DXW-PB,DXW-PB46

Low Temperature Type: DXW (DBR,DKW,DBW,DWK,DHY,DZL) corresponding to XTV Series.


Product Features

Model

Power

(W/m 10)

Working

Voltage (V)

Maximum

Length (m)

Flame Retardant

Basic Type Low Temperature

ZR DXW-J

10--50

24--380

100

Flame Retardant

Explosion-proof Type Low Temp.

ZR DXW-P

10--50

24--380

100

Flame Retardant

Protection Type Low Temp.

ZR DXW-F

10--50

24--380

100

Flame Retardant

Explosion-proof Protection Type Low Temp.

ZR DXW-PB

10--50

24--380

100

Flame Retardant

Explosion-proof Anti-corrosion Low Temp.

ZR DXW-PB 46

10--50

24--380

100


For example: ZR15DXW2-J means low temperature basic,10 per meter when the output power of 15W,working voltage is 220V.

ZR25DXW3-PF means flame retardant type low temperature explosion-proof protective,10 per meter when the output power of 25W,working voltage is 380V,with flame retardant,explosion-proof,protective performance.


Goods Features

Enhanced Type Low Temp. Flame Retardant Explosion-Proof

Model Name

DXW-PB

Insulation Thickness (mm)

Inner Insulation: 0.30mm,Outer Insulation: 0.40mm

Overall Thickness

5.40±1 mm

Width

14.1±1 mm

Nominal Power w/m

10,20,30,40,50,60

Voltage (V)

24,36,110,220,380

Wire Diameter

7*0.42,7*0.50,19*0.32

Highest Temperature

105

Applicable Occasions

Used for explosion-proff,anti-corrosion,low temp,humidity places
