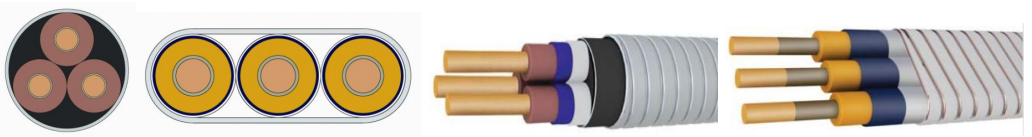

ESP Cable

Original Image

Products Visitors:7777

Products description:

Product Name: ESP Cable

Temperature Rating: 90℃,120℃,150℃,180℃,204℃,232℃,260℃

Voltage Range: 3kV,4kV,5kV,6kV,8kV

Standards: GB/T 16750,IEEE1017,IEEE1018,IEEE1019,API RP 11S5,API RP 11S6

Main Type: QYPN,QYPNY,QYEQ,QYEQNY,QYYEQ,QYYEQEY,QYYFF,QYYEE

Armor Materials: Galvanized Steel Tape,Stainless Steel Tape,Monel Steel Tape

Main Materials: Copper,NBR,EPDM,PI Film,Lead Sheath,PP,Fluoroplastic,Steel Tape etc.

Type	Shape	Conductor	Cond.Size	Insulation	Jacket	Temp.	Voltage	Standard
QYPN	Flat	Copper	AWG 1# AWG2# AWG3# AWG4# AWG5# AWG6# AWG7# AWG8#	PP	NBR	96℃	3KV 4KV 5KV 6KV 8KV	IEEE1017 IEEE1018 IEEE1019 APIRP 11S5 APIRP 11S6 GOST GB/T16750
QYLPN	Flat	Al-Alloy		PP	NBR	96℃
QYPN Shielded	Flat	Copper		PP	NBR	96℃
QYPF	Flat	Copper		PP	PVC	96℃
QYPQ	Flat	Copper		PP	Lead Sheath	110℃
QYEN	Flat	Copper		EPDM	NBR	120℃
QYYFN	Flat	Copper		Polyimide film & Fluoroplastic	NBR	120℃-150℃
QYEQ	Flat	Copper		EPDM	Lead Sheath	120℃-232℃
QYEE	Flat	Copper		EPDM	EPDM	120℃-232℃
QYYEE	Flat	Copper		Polyimide film & EPDM	EPDM	120℃-232℃
QYYEQ	Flat	Copper		Polyimide film & EPDM	Lead Sheath	232℃
QYYFF	Flat	Copper		Polyimide film & Fluoroplastic	Fluoroplastic	250℃
QYPNY	Round	Copper		PP	NBR	96℃
QYPFY	Round	Copper		PP	PVC	96℃
QYPQY	Round	Copper		PP	Lead Sheath	96℃
QYENY	Round	Copper		EPDM	NBR	120℃
QYEQNY	Round	Copper		EPDM	Lead & NBR	120℃
QYYEQNY	Round	Copper		Polyimide film & EPDM	Lead & NBR	120℃
QYYENY	Round	Copper		Polyimide film & EPDM	NBR	120℃
QYEEY	Round	Copper		EPDM	EPDM	120℃-232℃
QYEQEY	Round	Copper		EPDM	Lead & EPDM	120℃-232℃
QYYEQEY	Round	Copper		Polyimide film & EPDM	Lead & EPDM	120℃-232℃
QYYEEY	Round	Copper		Polyimide film & EPDM	EPDM	150℃-232℃
