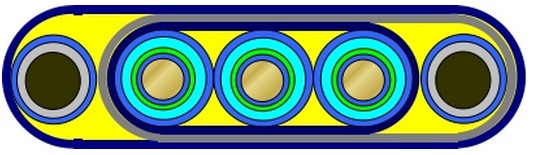

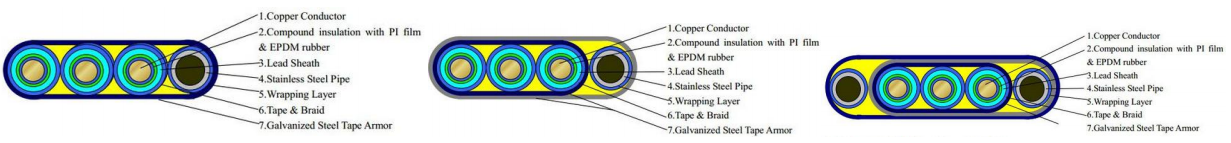

Flat Injection ESP Cable
Flat Injection ESP Cable
Original Image
Products Visitors:2186
Products description:


Product Name: Flat Injection ESP Cable

Temperature Rating: 120℃,150℃,204℃,232℃

Voltage Range: 3kV,4kV,5kV,6kV,8kV

Standards: GB/T 16750,IEEE1017,IEEE1018,IEEE1019,API RP 11S5,API RP 11S6

Main Type: QYEN+Capilar,QYEQ+Capilar,QYEE+Capilar,QYYEE+Capilar,QYYEQ+Capilar

Armor Materials: Galvanized Steel Tape,Stainless Steel Tape,Monel Steel Tape

Main Materials: Copper,NBR,EPDM,PI Film,Lead Sheath,Capilar,Steel Tape etc.


Standard Size of Injecting Tube


Size

OD

Inner Wall

Material

Working Pressure

1/4 Inches

0.049mm

6.35*1.245 mm

316L Stainless Steel

7350psi (50676kPa)

5/6 Inches

0.049mm

7.937*1.245 mm

316L Stainless Steel

5900psi (40681kPa)

3/8 Inches

0.049mm

9.525*1.245 mm

316L Stainless Steel

4900psi (337866kPa)

1/2 Inches

0.049mm

12.7*1.245 mm

316L Stainless Steel

14700psi (101353kPa)

1/8 Inches

3.175*1.0 mm

316L Stainless Steel

11600psi (80120kPa)

1/8 Inches

3.175*0.9 mm

316L Stainless Steel

8700psi (62110kPa)


Type

Shape

Conductor

Cond.Size

Insulation

Jacket

Temp.

Voltage

Standard

QYEN+Capilar

Flat

Copper

AWG1#

AWG2#

AWG3#

AWG4#

AWG5#

EPDM

NBR

120℃

3KV

4KV

5KV

6KV

8KV

IEEE1017

IEEE1018

IEEE1019

APIRP 11S5

APIRP 11S6

GOST

GB/T16750

QYEQ+Capilar

Flat

Copper

EPDM

Lead Sheath

120℃-232℃

QYEE+Capilar

Flat

Copper

EPDM

EPDM

120℃-232℃

QYYEE+Capilar

Flat

Copper

Polyimide film & EPDM

EPDM

150℃-232℃

QYYEQ+Capilar

Flat

Copper

Polyimide film & EPDM

Lead Sheath

232℃
