Flat Pack, 2x1/4"ODx0.049"WT Duplex2205 control line coil tubing plus 1x1/2"ODx0.065"WT Duplex2205 control line coil tubing
Applications: Oil & Gas Industry downhole application use. Used for hydraulic control, steam, liquid injection, according to design requirements, it can meet various application requirements such as fiber optic sensing, power supply, signal transmission, and hydraulic control.
Size of Flat Packer: 16.8 mm x 32 mm
Color: Blue, Yellow, Red, Pink, Green, Black, White or others.
Packing Length: 5000ft/spool, 8000ft/spool, 10000ft/spool, 11000ft/spool, 15000ft/spool, 22000ft/spool or Customized length.
Packing Methods: Export standard wooden spool packing or steel drum packing.
Features & Quality Advantages: Strictly production process and test process, easy to install and cost saving.
Documents: Before delivery, ESP Cable Solutions Co.,Limited will provide MRS, MTR, Pressure Test Report, Quality Certificate, Certificate of Origin etc.
Guarantee: 18 months after the Flat Packer left the shipping port.

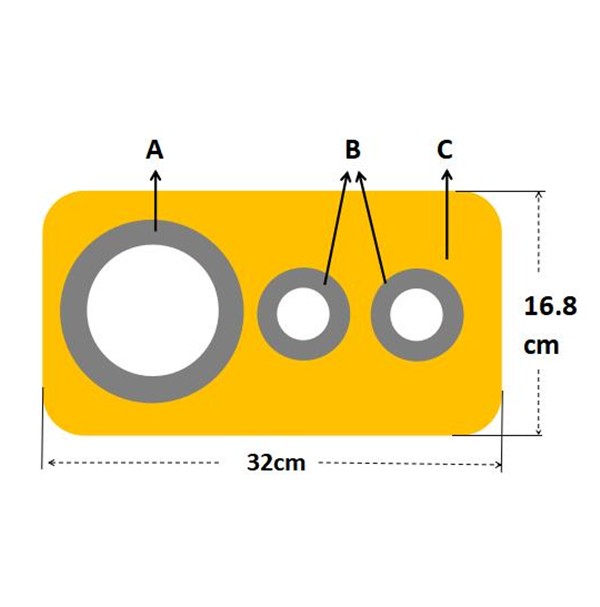

A.
1/2" OD x 0.065" WT Duplex 2205 Tube
B.
2 Lines × 1/4" OD x 0.049" WT Duplex 2205 Tube
C.
TRO-PP Encapsulation: 32mm×16.8mm
GENERAL PARAMETERS
DATA VALUES
TEMPERATURE RATING
150
℃
CABLE WEIGHT (Approximate)
1,178
KG/KM
OVERALL DIMENSIONS
32.00
mm
16.80
mm
OPTIONAL COLORS
Yellow, Green, Blue, Red
