Flat Pack 2x3/8"ODx0.049"AW A316L Hydraulic Control Lines Plus DHG Cable

Products Visitors:396

Product Name:Flat Pack 2x3/8"ODx0.049"AW A316L Hydraulic Control Lines Plus DHG Cable

Products description:

Flat Pack 2x3/8"ODx0.049"AW A316L Hydraulic Control Lines Plus DHG Cable (1/4" OD x 0.028" WT 316L)

Applications: Oil & Gas Industry downhole application use.

Size of Flat Packer: 14mm x 36 mm

Color: Blue, Yellow, Red, Pink, Green, Black, White or others.

Packing Length: 5000ft/spool, 8000ft/spool, 10000ft/spool, 11000ft/spool, 15000ft/spool, 22000ft/spool or Customized length.

Packing Methods: Export standard wooden spool packing or steel drum packing.

Features & Quality Advantages: Strictly production process and test process.

Documents: Before delivery, ESP Cable Solutions Co.,Limited will provide MRS, MTR, Pressure Test Report, Quality Certificate, Certificate of Origin etc.

Guarantee: 18 months after the Flat Packer left the shipping port.

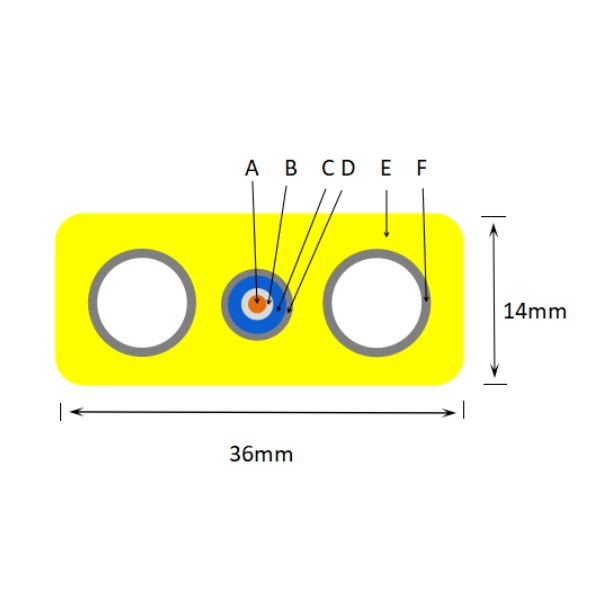

A.	18#AWG Tinned Solid Copper Conductor: OD 1.02mm Nominal
B.	FEP, T-01 INSULATION: OD 2.49mm Nominal, Natural
C.	PP, P-06 JACKET: OD 4.92mm Nominal, Red
D.	316L STAINLESS STEEL TUBE: WALL THICKNESS: 0.71mm(0.028"), OD 6.35mm(0.250") Nominal
E.	TRO-PP ENCAPSULATION, 36mm x 14mm Flat
F.	HYDRAULIC TUBES: 3/8" x 0.049" A316L Stainless Steel Tube

PHYSICAL CHARACTERISTICS	DATA VALUES
RATED WORKING PRESSURE	10000	psi
TEMPERATURE RATING	150	℃

ELECTRICAL CHARACTERISTICS	DATA VALUES
CENTER COND. DC RESISTANCE AT 20℃	22.20 Max	ohms/km
STAINLESS TUBE DC RESISTANCE AT 20℃	62.0 Max	ohms/km
VOLTAGE RATING DC	1000	VRMS
CAPACITANCE CERTER COND. TO TUBE	84 Nominal	pf/m
INSULATION RESISTANCE AT 20℃ CENTER CONDUCTOR TO TUBE	3196 Min	Megohm-km
