Three Alloy825 Hydraulic Control Line Flat Packer use for hydraulic control.

Flat Pack 3x1/4"ODx0.049"AW Alloy825 Hydraulic Control Line

Products Visitors:140

Product Name:Flat Pack 3x1/4"ODx0.049"AW Alloy825 Hydraulic Control Line

Products description:

Flat pack for 3 x 1/4"OD x 0.049"AW Alloy825 hydraulic control line

Applications: Oil & Gas Industry downhole application use. Used for hydraulic control, steam, liquid injection, according to design requirements, it can meet various application requirements such as fiber optic sensing, power supply, signal transmission, and hydraulic control.

Size of Flat Packer: 12mm x 28 mm

Color: Blue, Yellow, Red, Pink, Green, Black, White or others.

Packing Length: 5000ft/spool, 8000ft/spool, 10000ft/spool, 11000ft/spool, 15000ft/spool, 22000ft/spool or Customized length.

Packing Methods: Export standard wooden spool packing or steel drum packing.

Features & Quality Advantages: Strictly production process and test process, easy to install and cost saving.

Documents: Before delivery, ESP Cable Solutions Co.,Limited will provide MRS, MTR, Pressure Test Report, Quality Certificate, Certificate of Origin etc.

Guarantee: 18 months after the Flat Packer left the shipping port.

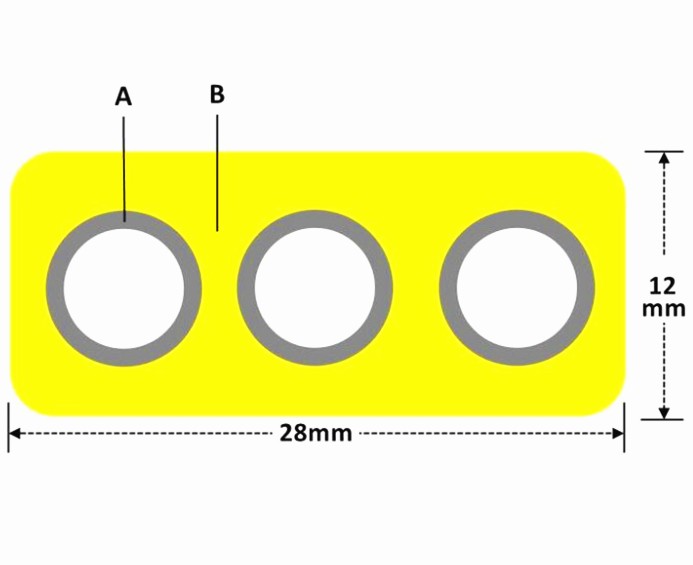

A.	3 × 1/4" OD x 0.049" WT Alloy825 Tube
B.	TRO-PP Encapsulation: 12mm×28mm, Yellow Color

GENERAL PARAMETERS	DATA VALUES
TEMPERATURE RATING	150	℃
CABLE WEIGHT (Approximate)	698	KG/KM
OVERALL DIMENSIONS	12.00	mm
OVERALL DIMENSIONS	28.00	mm
OPTIONAL COLORS	Yellow, Green, Blue, Red
