Flat Packer three 1/4 Alloy825 Hydraulic Control Lines with Tubing Encapsulated Cable ( TEC Cable )

Flat Pack 3x1/4"ODx0.049"AW Alloy825 Hydraulic Control lines Plus DHG Cable

Products Visitors:436

Product Name:Flat Pack 3x1/4"ODx0.049"AW Alloy825 Hydraulic Control lines Plus DHG Cable

Products description:

Flat pack for 3 x 1/4"OD x 0.049"AW Alloy 825 hydraulic control line Plus DHG cable (1/4" OD x 0.028" WT A825)

Applications: Oil & Gas Industry downhole application use.

Size of Flat Packer: 12mm x 36 mm

Color: Blue, Yellow, Red, Pink, Green, Black, White or others.

Packing Length: 5000ft/spool, 8000ft/spool, 10000ft/spool, 11000ft/spool, 15000ft/spool, 22000ft/spool or Customized length.

Packing Methods: Export standard wooden spool packing or steel drum packing.

Features & Quality Advantages: Strictly production process and test process.

Documents: Before delivery, ESP Cable Solutions Co.,Limited will provide MRS, MTR, Pressure Test Report, Quality Certificate, Certificate of Origin etc.

Guarantee: 18 months after the Flat Packer left the shipping port.

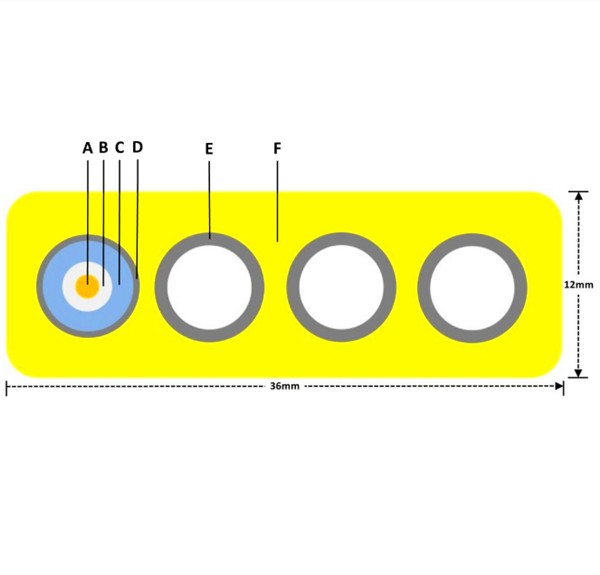

A.	16#AWG 7 × 0.487mm Tinned Stranded Copper Conductor: OD 1.47mm Nominal
B.	FEP, T-01 Insulation: OD 2.60mm Nominal, Natural
C.	PP, P-06 Jacket: OD 4.92mm Nominal, Red
D.	Alloy 825 Tube; Wall Thickness: 0.71mm(0.028"), OD 6.35mm(0.250") Nominal
E.	3 × 1/4" OD x 0.049" WT Alloy 825 Tube
F.	TRO-PP Encapsulation: 12mm×36mm, Yellow Color

TEC CORE - PHYSICAL CHARACTERISTICS	DATA VALUES
EXTERNAL COLLAPSE PRESSURE	30,000	PSI
RATED WORKING PRESSURE	15,000	PSI
TENSILE STRENGTH	≥ 11	KN
TEMPERATURE RATING	150	℃

TEC CORE - ELECTRICAL CHARACTERISTICS	DATA VALUES
CENTER COND. DC RESISTANCE AT 20℃	≤ 13.58	Ω/KM
STAINLESS TUBE DC RESISTANCE AT 20℃	≤ 62.00	Ω/KM
VOLTAGE RATING DC	1,000	VRMS
CAPACITANCE CERTER COND. TO TUBE	84 Nominal	PF/M
INSULATION RESISTANCE AT 20℃ CENTER CONDUCTOR TO TUBE	≥ 3,196	MΩ/KM
