Flat Pack 5/8"ODx0.065"WT Duplex2205 tube plus 1/4"ODx0.049"WT Duplex2205 tube

Products Visitors:126

Product Name:Flat Pack 5/8"ODx0.065"WT Duplex2205 tube plus 1/4"ODx0.049"WT Duplex2205 tube

Products description:

Flat Packer, 5/8"OD×0.065"WT Duplex2205 control line coil tubing plus 1/4"OD×0.049"WT Duplex2205 control line coil tubing, TRO-PP Encapsulation

Applications: Oil & Gas Industry downhole application use. Used for hydraulic control, steam, liquid injection, according to design requirements, it can meet various application requirements such as fiber optic sensing, power supply, signal transmission, and hydraulic control.

Size of Flat Packer: 20mm x 28 mm

Color: Blue, Yellow, Red, Pink, Green, Black, White or others.

Packing Length: 5000ft/spool, 8000ft/spool, 10000ft/spool, 11000ft/spool, 15000ft/spool, 22000ft/spool or Customized length.

Packing Methods: Export standard wooden spool packing or steel drum packing.

Features & Quality Advantages: Strictly production process and test process, easy to install and cost saving.

Documents: Before delivery, ESP Cable Solutions Co.,Limited will provide MRS, MTR, Pressure Test Report, Quality Certificate, Certificate of Origin etc.

Guarantee: 18 months after the Flat Packer left the shipping port.

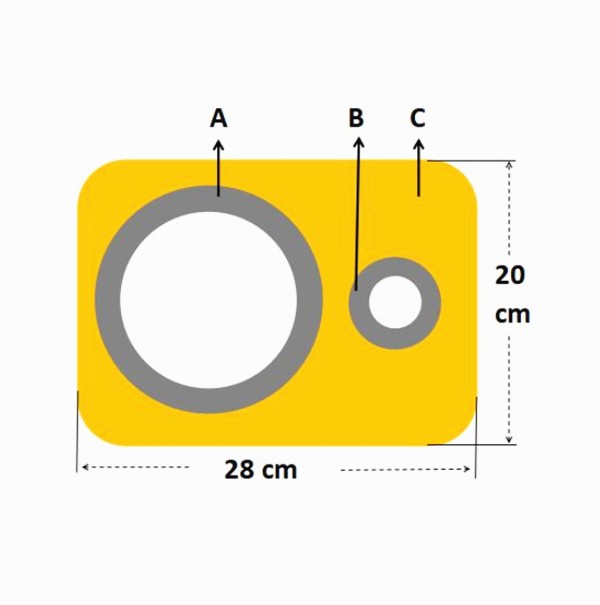

A.	5/8" OD x 0.065" WT Duplex 2205 Tube
B.	1/4" OD x 0.049" WT Duplex 2205 Tube
C.	TRO-PP Encapsulation: 28mm×20mm

GENERAL PARAMETERS	DATA VALUES
TEMPERATURE RATING	150	℃
CABLE WEIGHT (Approximate)	1,035	KG/KM
OVERALL DIMENSIONS	28.00	mm
OVERALL DIMENSIONS	20.00	mm
OPTIONAL COLORS	Yellow, Green, Blue, Red
