Dual Flat Packer of Duplex2205 Encapsulated Control Line Coil Tubing

Flat Packer 3/8"ODx0.049"WT Duplex2205 Dual TRO-PP Encapsulation Control Line

Products Visitors:480

Product Name:Flat Packer 3/8"ODx0.049"WT Duplex2205 Dual TRO-PP Encapsulation Control Line

Products description:

Flat Packer, 3/8"OD×0.049"WT 2205 Duplex Dual TRO-PP Encapsulation Control Line Coil Tubing

Applications: Oil & Gas Industry downhole application use. Used for hydraulic control, steam, liquid injection, according to design requirements, it can meet various application requirements such as fiber optic sensing, power supply, signal transmission, and hydraulic control.

Size of Flat Packer: 13mm x 24 mm

Color: Blue, Yellow, Red, Pink, Green, Black, White or others.

Packing Length: 5000ft/spool, 8000ft/spool, 10000ft/spool, 11000ft/spool, 15000ft/spool, 22000ft/spool or Customized length.

Packing Methods: Export standard wooden spool packing or steel drum packing.

Features & Quality Advantages: Strictly production process and test process, easy to install and cost saving.

Documents: Before delivery, ESP Cable Solutions Co.,Limited will provide MRS, MTR, Pressure Test Report, Quality Certificate, Certificate of Origin etc.

Guarantee: 18 months after the Flat Packer left the shipping port.

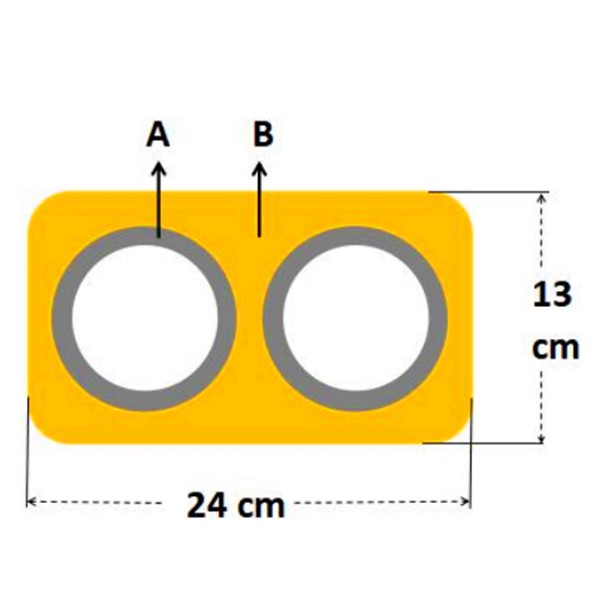

A.	2 Lines × 3/8" OD x 0.049" WT 2205 Duplex Tube
B.	TRO-PP Encapsulation: 24mm×13mm

GENERAL PARAMETERS	DATA VALUES
TEMPERATURE RATING	150	℃
CABLE WEIGHT (Approximate)	565	KG/KM
OVERALL DIMENSIONS	24.00	mm
OVERALL DIMENSIONS	13.00	mm
OPTIONAL COLORS	Yellow, Green, Blue, Red
