Flatpack for CIV with Strips, 2x3/8"ODx0.065" Alloy625 Chemical Injection Line


Products Visitors:142
Products description:


Flatpack for CIV with Strips- 2 x 3/8" OD x 0.065"WT Alloy625 Chemical Injection Line

Applications:  Oil & Gas Industry downhole application use. Used for hydraulic control, steam, liquid injection, according to design requirements, it can meet various application requirements such as fiber optic sensing, power supply, signal transmission, and hydraulic control.

Size of Flat Packer: 13.2mm x 25 mm

Color:  Blue, Yellow, Red, Pink, Green, Black, White or others.

Packing Length:  5000ft/spool,  8000ft/spool,  10000ft/spool,  11000ft/spool,  15000ft/spool,  22000ft/spool or Customized length.

Packing Methods:  Export standard wooden spool packing or steel drum packing.

Features & Quality Advantages:  Strictly production process and test process, easy to install and cost saving.

Documents:  Before delivery, ESP Cable Solutions Co.,Limited will provide MRS, MTR, Pressure Test Report, Quality Certificate, Certificate of Origin etc.

Guarantee:  18 months after the Flat Packer left the shipping port.

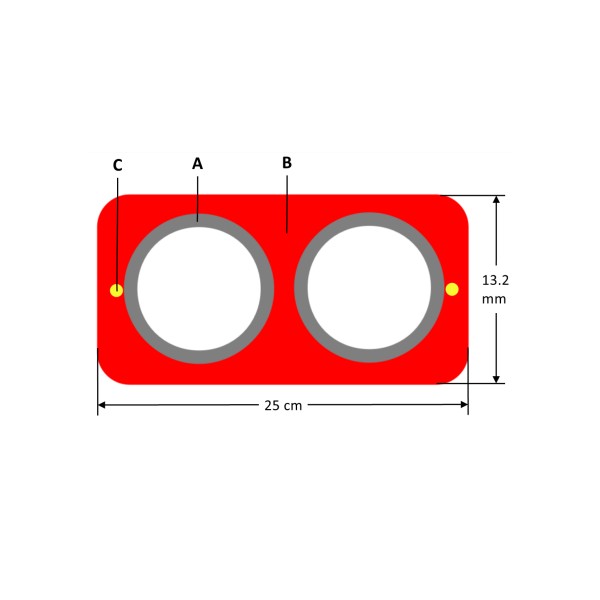

A.

  2ea line x 3/8" OD x 0.065" wall thickness made in Nickel base Alloy 625 (UNS N06625) – filled with HW443, NAS 6;

  Mechanical properties per tubing as below:

  Burst Pressure: ≥41,786 PSI; Collapse Pressure: ≥23,546 PSI

  Load at 0.2% YS: ≥5,697 IBS; Load at Typical UTS: ≥8,736 IBS

B.

  Encapsulation material PVDF Copolymer (-25 to 140degC);

  Dimension: 25mm×13.2mm; Red Color.

C.

  Safety-Strips placed in tube and bumper outer sides.
