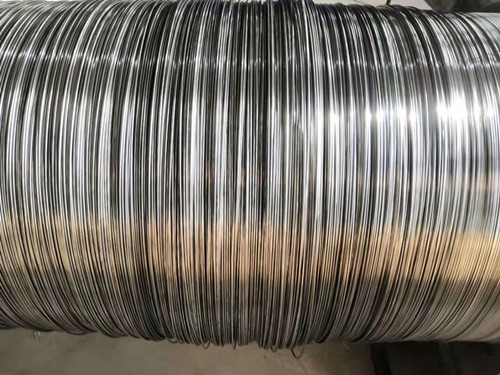

Mini-coiled Tubing for Downhole Use
General: Our Mini-coiled tubing reduce the risk of leakage of the instrument hydraulics. By reducing the number of joints in the system, the installation is more convenient, especially for vertically installed industrial and mining, the advantages are more obvious. The Mini-coiled tubing improves the integrity of the entire system and reduces the risk of leakage, greatly reducing maintenance costs. Our Mini-coiled tubes can be used as oil and gas downhole control lines, chemical injection lines, instrumentation lines, electric mixing lines or steam heating lines, pre-insulation lines, flue gas pipes, heater coils, etc.
Standards: ASTM A312, ASTM A358, ASTM A249, ASTM A269, ASTM A554, ASTM A789, ASTM A790, DIN 17457, JIS G3459, GB/T12770-2002, GB/T12771-2008, EN 10204 3.1 etc.
Applications: Oil & Gas Industry downhole application use.
Material: 316L, 316Ti, Duplex2205, Duplex 2507, Alloy400, Alloy825, Alloy625 etc.
Cap Tube OD: 1/8", 1/4", 3/8", 3/4", 5/8" etc.
Wall Thickness: 0.028", 0.035", 0.049", 0.065", 0.083" etc.
Packing Length: 5000ft/spool, 8000ft/spool, 10000ft/spool, 11000ft/spool, 15000ft/spool, 22000ft/spool, 33000ft/spool.
Packing Methods: Export standard wooden spool packing or steel drum packing.
Features & Quality Advantages: The condition of our Mini-coiled tubing is good welded and good quality, bright annealed, one continuous length without butt welded joints, round in cross-section, surface of the tubing is smooth and free of scratches, every spool will be pressure testing and without leakage risk, high tensile strength and yield strength, good spools and packing neatly, longer service life.
Documents: Before delivery, ESP Cable Solutions Co.,Limited will provide MRS, MTR, Pressure Test Report, Quality Certificate, Certificate of Origin etc.
Guarantee: 18 months after the Mini-coiled tubing left the shipping port.

-
