OPPC Cable
Products Visitors:1662
Products description:

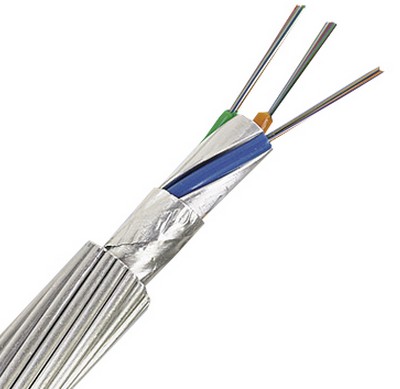

Product Name: OPPC Cable

Full Name: Optical Fiber Composition Phase Conductor

General Description: Is the cable which composes the optical fiber unit into the phase line

The Aluminum tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires  Aluminum wires / Aluminum alloy wires Optical fibers. Aluminum. OPPC cables have the dual functions performance functions of phase conductors with communication capabilities.

OPPC Characteristic:

Replacing one or several wires of the traditional conductor with stainless steel tube and strand the tube with AS/steel wires  and AL/AA wires;

Replacing one of the three phase conductors with OPPC, thus to form a transmission line which consists of  one OPPC and two phase conductors.

OPPC can meet durative high temperature resistant which verified by Temperature Cycling test and Short Current test.

OPPC is applied to middle & high voltage power lines without ground wires such as 10kV, 35kV, 66kV and so on.

Telecommunications for middle & high voltage power lines in urban and rural areas;Providing optical cables for building distribution automation station.


Specification

Fiber Count

Diameter (mm)

Weight (kg/km)

RTS (KN)

Ampacity (40ºC-70ºC)

Ampacity (40ºC-90ºC)

OPPC-240/30

16

21.7

890

76.6

445A

639A

OPPC-70/10

16

17.4

598

52.8

351A

495A

OPPC-120/25

24

15.9

523

49

308

432A

OPPC-150/35

24

17.6

641

64.5

348

492A
