Products description:

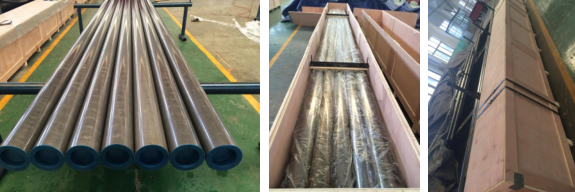

Product Name: Housing

Application: Used for electrical submersible pump as housing,mainly for 400 series,456 series,538 series,540 series,562 series etc.

Motor Housing Materials: 9Cr1Mo(ASTM A335 T9/P9),35CrMo,42CrMo,1Cr5Mo(ASTM A335 P5),TP304,TP316,Q3465B etc.

Pump Housing Materials: 35# steel,45# steel,Q345B etc.

Produce Scope: 98mm-140mm,the length≤12m.


1

Tensile Strength

≥560 Mpa

2

Yield Strength

≥525 Mpa

3

Elongation

≥10%

4

Inner Hole Roundless

≤0.054mm

5

Wall Thickness Tolerance

≤0.5mm

6

Straightness

≤0.08mm/m
