RDP2-J4 Type High Temperature Constant Power Electric & Heating Cable

RDP2-J4 Type High Temperature Heating Cable

Original Image

Products Visitors:1876

Product Name:RDP2-J4 Type High Temperature Heating Cable

Products description:

Product Name: RDP2-J4 Type High Temperature Constant Power Electric & Heating Cable

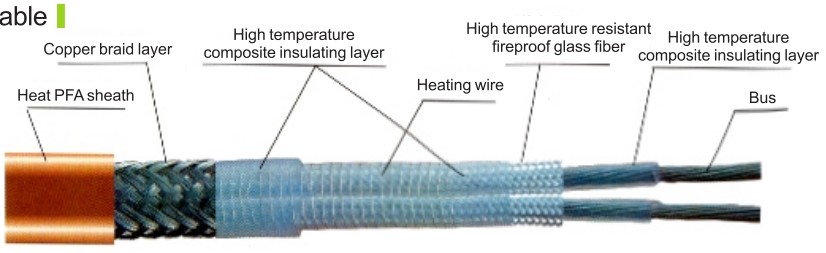

General Description: RDP2-J4 type constant power electric & heating cable is same with RDP2-J3 type of working principle,structure,application,can be used in one factory area or two with explosive gas mixture of T3-T6.The main difference is high temperature for high resistant level,the maintenance temperature of media ≤205℃ and insulation materials can reach to 260℃.

Application: RDP2-J4 type constant power electric & heating cable is applicable for pipe,valve,pump body heat,antifreeze and insulation or maintain the instrument piping process temperature,especially suitable for large diameter and long distanec of thermal insulation.

Model	Rated Voltage(V)	Rated Power W/m	Bidirectional Max. Length m	Highest Heat ℃	Explosion-proof grade EX	Insulation Resistance
RDP2-J4-30	220	30	300	260	eⅡT3-T6	≥50MΩ
RDP2(Q)-J4-30	220	30	300	260	eⅡT3-T6	≥50MΩ
RDP2-J4-40	220	40	260	260	eⅡT3-T6	≥50MΩ
RDP2(Q)-J4-40	220	40	260	260	eⅡT3-T6	≥50MΩ
RDP2-J4-50	220	50	220	260	eⅡT3-T6	≥50MΩ
RDP2(Q)-J4-50	220	50	220	260	eⅡT3-T6	≥50MΩ

Model	RDP2-J4
Product Specification	7-9 mm
Temperature Range	0-150℃
Heat Resistance Temperature	205℃-260℃
Standard Power	10-60 W/M
Rated Voltage	220V,380V
Normal Insulation Resistance	≥750 MΩ
Protection Grade	J3-205℃,J4-260℃
Dielectric Strength	2*rated voltage+2500
Insulation Materials	F46 fluoroplastic
Applicable Occasions	RDP2-J4 type constant power electric & heating cable is applicable for pipe,valve,pump body heat,antifreeze,and insulation or maintain the instrument piping process temperature,especially suitable for large diameter,long distance of thermal insulation.
