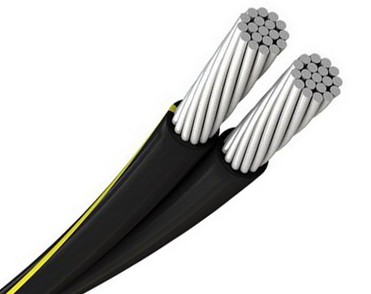

Product Name:Secondary UD Duplex

Products description:

Product Name: Secondary UD Duplex

General Description: 600V,stranded ,compressed 1350-H 19 aluminum insulated with XLPE.Neutrals are identified with tripe solid yellow stripes,one phase conductor and one neutral conductor cabled together.

Standards: ASTM Spec. B-230,B-231,UL854,ICEA S-105-692

Application: The 600V Secondary UD Duplex Cable is mainly used for secondary distribution and underground service either direct burial or in ducts.

Code	Phase Conductor			Neutral			Diameter		Weight 1000 ft lbs	Allowable Ampacities Raceway cable,ducts
Code	AWG Kcmil	Wires Nos	Insulation Thickness in	AWG Kcmil	Wires Nos	Insulation Thickness in	Phase Conductor in	Whole Cable in	Weight 1000 ft lbs	Allowable Ampacities Raceway cable,ducts
Clafin	6	7	0.060	6	7	0.060	0.298	0.596	91	70
Delgado	4	7	0.060	4	7	0.060	0.344	0.688	129	110
