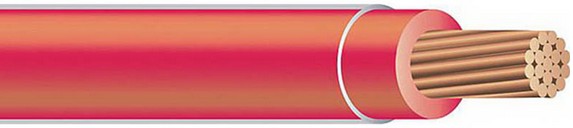

TFFN Cable
TFFN Cable
Original Image
Products Visitors:1886
Products description:


Product Name: TFFN Cable

General Description: 600V,copper conductor,thermoplastic insulation/nylon sheath,heat,moisture,gasoline and oil resistant.

Applications: TFFN cables are used in internal equipment and board wiring,installation in ducts tubing and boards,specially for locations with abrasive environment,oil,grease,gasoline and other chemical agents contaminated ambient. Its reduced diameter permits an optimum utilization of ducts or sites where is installed.

Standards: UL Standard 66

Temperature: 75℃ wet,75℃ oil,90℃ dry,600V

Construction: Flexible soft copper conductor,Class K stranded,PVC insulation,flame retardant jacket,abrasion resistant Nylon.

Color: Black,White,Red,Yellow,Blue and others.


Size

AWG

Strands

Section

Conductor Diameter

mm

Insulation Thickness

mm

Jacket Thickness

mm

Diameter over Jacket

mm

Appro.

Weight

Kg/km

DC Resistance

at 20℃
ohm/km

Ampacity

A

18

16

0.81

1.23

0.38

0.10

2.29

11

21.4

6

16

26

1.32

1.51

0.38

0.10

2.59

17

13.4

8
